LBSA DALY 100a 15S/16S 48V LiFePO4 Smart BMS with Optional Display or Bluetooth

R 2,614.95
Out Of Stock
-
+
Add to Wishlist

Download Datasheet

*Please note that display and Bluetooth are sold separately.

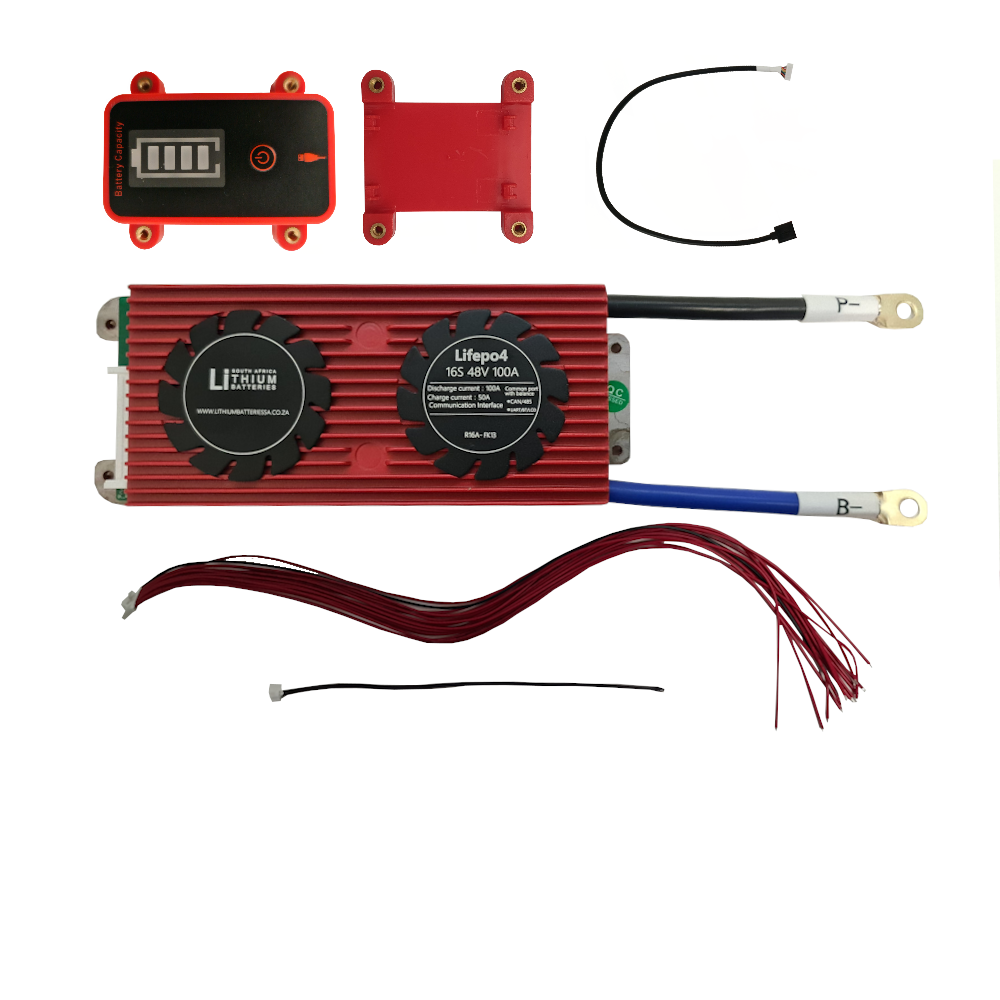

 *Daly Smart BMS LED Capacity Display/Power Button and UART to USB is included.




1 YEAR WARRANTY
Any damage or blown resistors due to incorrect connection voids the warranty

Electrical Parameters: Room temperature 25℃, humidity 55%



Daly host program  UART to USB Cable required VIEW (Below driver to be installed.

Daly host program Driver TO BE INSTALLED WHEN USING Daly Host Program and UART


Bluetooth APP : Search SMART BMS in your App store ( Android or Apple ) - Bluetooth module required







 N0 DESCRIPTION SPECIFICATION UNIT REMARKS
1 Discharge Continue discharge current 100 A
2 Charge Charge Voltage 58.4
V
Charge current 50 A
3 Over Charge Protection Over charge detect voltage 3.75+-0.05 V
Over charge protection delay
1
S


Over charge release voltage
3.55±0.05
V

4 Balance
Balance detect Voltage
3.20
V
Balance current
30±5
mA
Balanced opening condition
1. On a charge
2. Achieve set balance opening differential pressure
3. Achieve 50mv
5 Over discharge protection
Over discharge detect
2.2±0.1
V
Over discharge detect delay
1 S
Over discharge release voltage
2.
2.3±0.1
V
6 Over Charge current protection
Over discharge detect
150±15 A
Can set as
required
Over Charge current detect delay
1 S Can set as
required
Over Charge current protection
release condition
Off load Off load Off load
7 Over discharge current protection
Over discharge current detect voltage
150±15 A Can set as
required
Over discharge current detect delay
1 S Can set as
required
Over discharge current
protection release condition
Off load Off load Off load
8 Short Circuit
protection
Short Circuit protection condition
Short circuit of external load Short circuit of external load Short circuit of external load
Short circuit detect delay 320 uS
Short circuit protection release Off load Off load Off load
9 Temp
Protect
Charge Temperature protection degrees -40~65

Recover-35

Recover 60

Discharge Temperature protection degrees -40~70

Recover-35

Recover 60

Release Condition of temperature protection  Recovery temperature reached and load disconnected

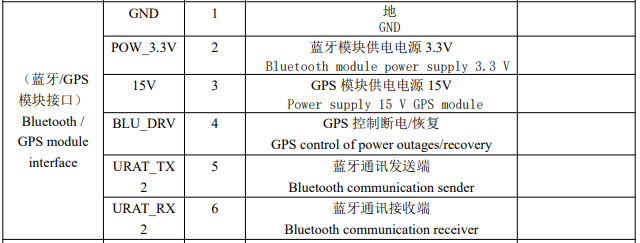

10 Means of communication UART Display or Bluetooth
11 Inner
Resistance
Main Circuit Conduct Inner
resistance
<20
12 Self
Consumption
Working current 35 mA
Sleeping current( over-discharge) 800 uA
13 Working Temp Temp range -20~70

Storing Temp Temp range -40~80



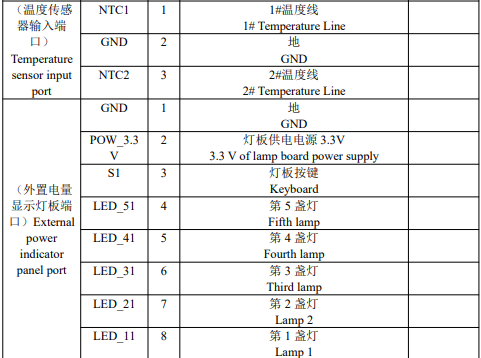

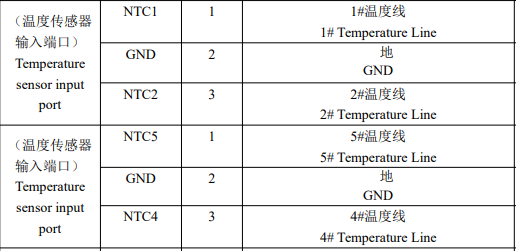

Wiring operation

1. First connect the B-cable of the protection board to the total negative pole of the battery pack.

2. The cable starts from the thin black one connecting B-, the second red cable connects the
positive pole of the first string of batteries, and the next string is connected in turn. The positive pole of the pool and then insert the cable into the protection board.

3. After finishing the wiring soldering, measure whether the battery B+, B-voltage and P+,P-voltage values are the same, the protection board works positively.

4. When removing the protection board, first pull out the cable (if there are two cables, pull the
high-voltage cable first, then pull the low-voltage cable), then remove Power cable B-.
