THE LBSA RHINO INTELLIFLEX HV
HV-104-WFRE RACK

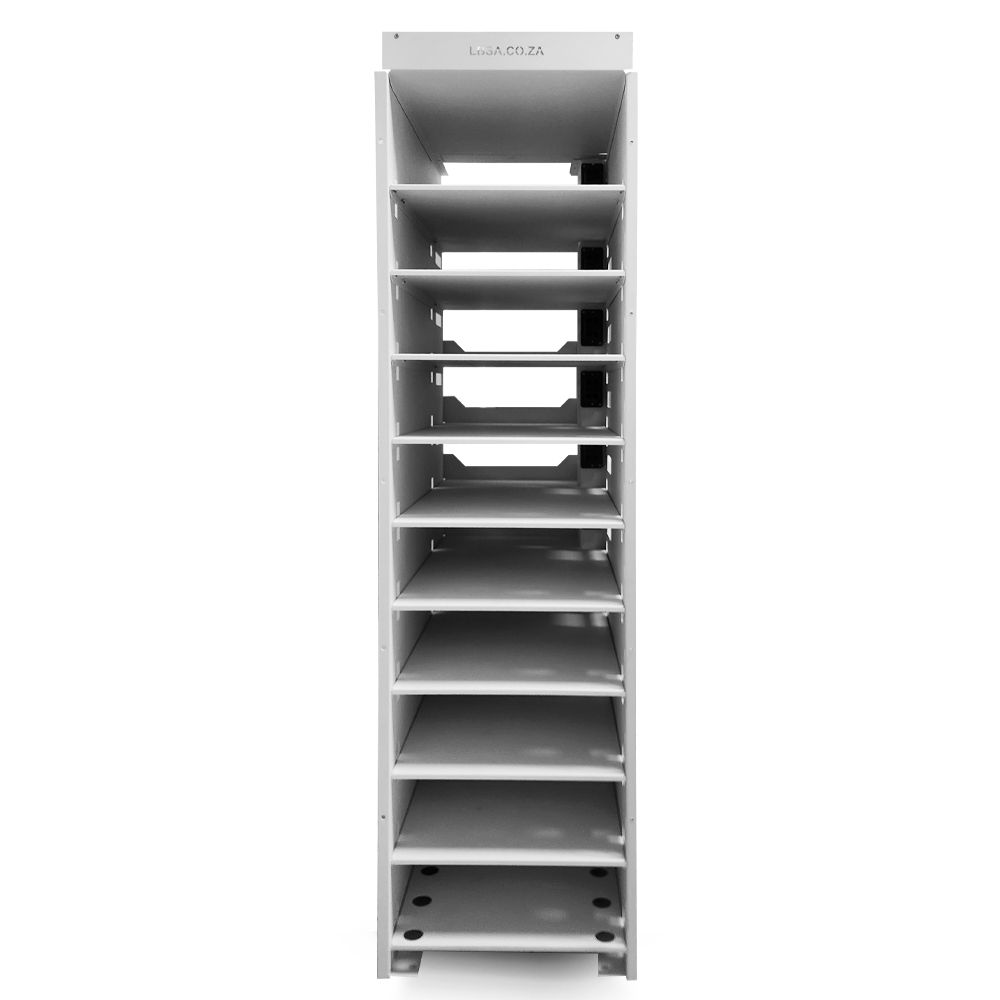

Meet the LBSA High-Voltage Rack – a robust steel rack designed to house HV104-14WFRE modules and controllers for a clean, high-efficiency energy storage system. With built-in click-connectors and a concealed main cable compartment, it offers a neat, cable-free appearance while ensuring easy installation. Available in two configurations: Standard Rack (up to 9 modules) and Extended Rack (up to 11 modules), making it ideal for commercial, residential, industrial, or utility-scale setups. Designed for reliability and flexibility, it delivers scalable, future-ready performance in a compact and organized form.
AVAILABLE RACK CONFIGURATIONS
Choose the rack configuration that best suits your energy storage needs. The LBSA High-Voltage Rack is available in two sizes to accommodate different capacity requirements and installation scenarios.
| STANDARD RACK | Up to 9 Modules + 1 Controller (23.94 kWh - 71.88 kWh) Ideal for commercial, residential, or mixed-use installations |
| EXTENDED RACK | Up to 11 Modules + 1 Controller (23.94 kWh - 87.86 kWh) Perfect for large commercial, industrial, or utility-scale applications |
DETAILS
Discover what makes the LBSA High-Voltage Rack a smart choice for your energy storage setup. Below you'll find key specifications, performance data, and compatibility details to help you plan and build your ideal high-voltage rack system with confidence.
| RACK CAPACITY | Standard: Up to 9 Modules + 1 Controller Extended: Up to 11 Modules + 1 Controller |
| RACK MATERIAL | Robust Steel Construction |
| CABLE MANAGEMENT | Concealed Main Cable Compartment |
| CONNECTION SYSTEM | Built-in Click-Connectors |
| INSTALLATION | Cable-Free Appearance |
WARRANTY
The LBSA Rhino Intelliflex High Voltage Rack is built for long-term reliability and peace of mind, offering a 10-year warranty with unlimited cycles. Designed to deliver consistent performance year after year, it's a rack solution you can depend on for both durability and efficiency.
KEY FEATURES
The LBSA Rhino IntelliFlex High Voltage Rack offers a robust housing solution designed to accommodate HV104-14WFRE modules and controllers. Built for scalability, it supports up to 9 or 11 modules (depending on configuration) with integrated cable management and click-connector technology. The rack features a concealed cable compartment ensuring longevity and reliability. Its steel construction facilitates easy integration into existing setups, making it suitable for various applications from residential to utility-scale.
| CABLE FREE POWER AND COMMUNICATION EASY. |
| BUILT-IN CLICK CONNECTORS. |
| SIMPLE MODULE INSTALLATION. |
| CONCEALED CABLE COMPARTMENT. |
| ROBUST STEEL CONSTRUCTION. |
| SCALABLE MODULE CAPACITY (UP TO 9 OR 11 MODULES). |
RACK BASIC PARAMETERS
Discover the essential details of the LBSA High-Voltage Rack. Below, you'll find the rack's core specifications, physical parameters, and capacity features, giving you the information you need to design, plan, and integrate a high-voltage rack system with confidence.
| RACK CAPACITY | Standard: Up to 9 Modules + 1 Controller Extended: Up to 11 Modules + 1 Controller |
| RACK MATERIAL | Robust Steel Construction |
| DIMENSIONS (mm) RACK | 444.6 x 723.5 x 1648.3 |
| WEIGHT (Kg) | 9 Module Rack (Empty): 90 kg 11 Module Rack (Empty): 103 kg Controller: 24.20 kg Module: 64 kg |
| CABLE MANAGEMENT | Concealed Main Cable Compartment |
| CONNECTION SYSTEM | Built-in Click-Connectors |
| INSTALLATION TYPE | Floor Standing |
| MOUNTING | Seismic-Resistant Anchor Points |
| COOLING SUPPORT | Optimized Air Flow Design |
| MODULE COMPATIBILITY | HV104-14WFRE Modules |
| CONTROLLER SUPPORT | 1 Controller Per Rack |
| EXPANSION CAPABILITY | Modular Design for Easy Expansion |
| SAFETY FEATURES | Fire Suppression Ready |
| OPERATING TEMPERATURE | 0 - 45 ℃ |
| PROTECTION RATING | IP20 (Indoor Installation) |
| WARRANTY | 10 Years Standard |
3 TO 11 MODULES ENSURE COMPATIBILITY WITH YOUR RACK REQUIREMENTS
Easily scale your energy system with 3 to 11 LBSA High-Voltage Modules per rack. This range allows you to match your energy requirements and rack capacity needs, giving you the flexibility to build a high-voltage setup that's both efficient and perfectly suited to your energy demands. Choose the Standard Rack for up to 9 modules or the Extended Rack for up to 11 modules.
| 3 x MODULES PER RACK | 23,964 Wh |
| 4 x MODULES PER RACK | 31,948 Wh |
| 5 x MODULES PER RACK | 39,935 Wh |
| 6 x MODULES PER RACK | 47,922 Wh |
| 7 x MODULES PER RACK | 55,909 Wh |
| 8 x MODULES PER RACK | 63,896 Wh |
| 9 x MODULES PER RACK | 71,883 Wh (Standard Rack Maximum) |
| 10 x MODULES PER RACK | 79,870 Wh (Extended Rack Only) |
| 11 x MODULES PER RACK | 87,857 Wh (Extended Rack Maximum) |
