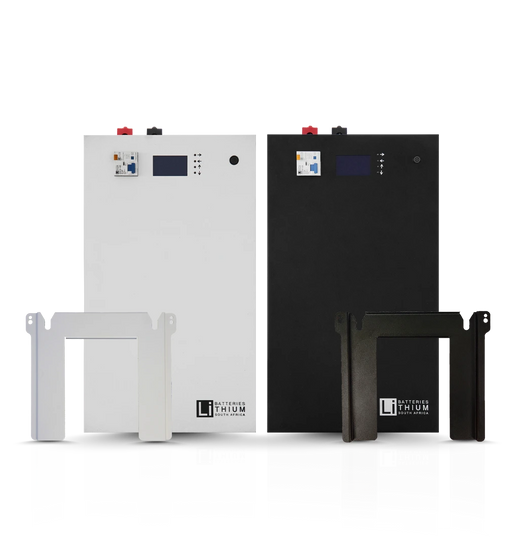

Locally assembled LiFePO₄ storage — from 2.6 kWh wall-mount units to multi-megawatt high-voltage arrays — with integrated fire suppression and local support that picks up the phone.

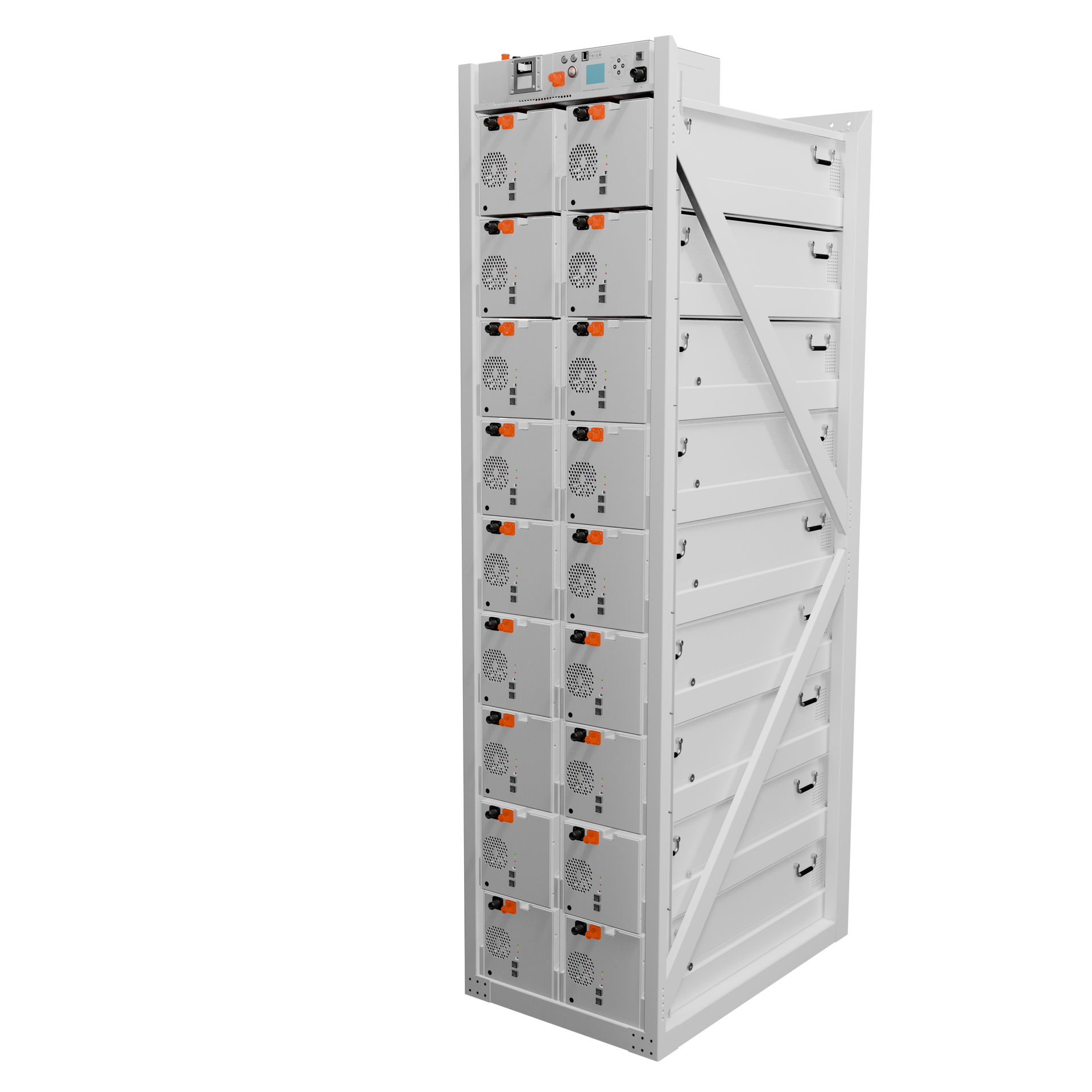

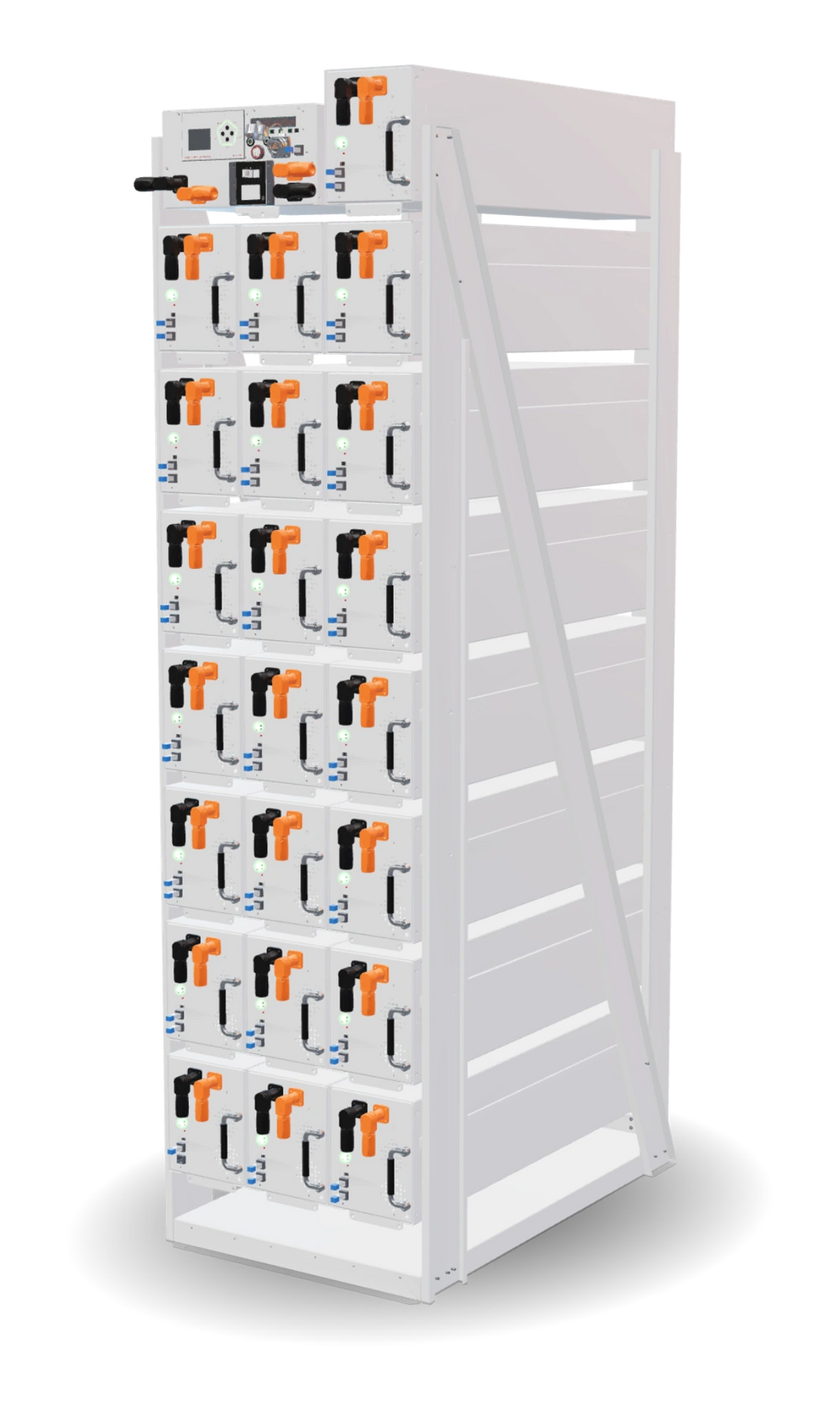

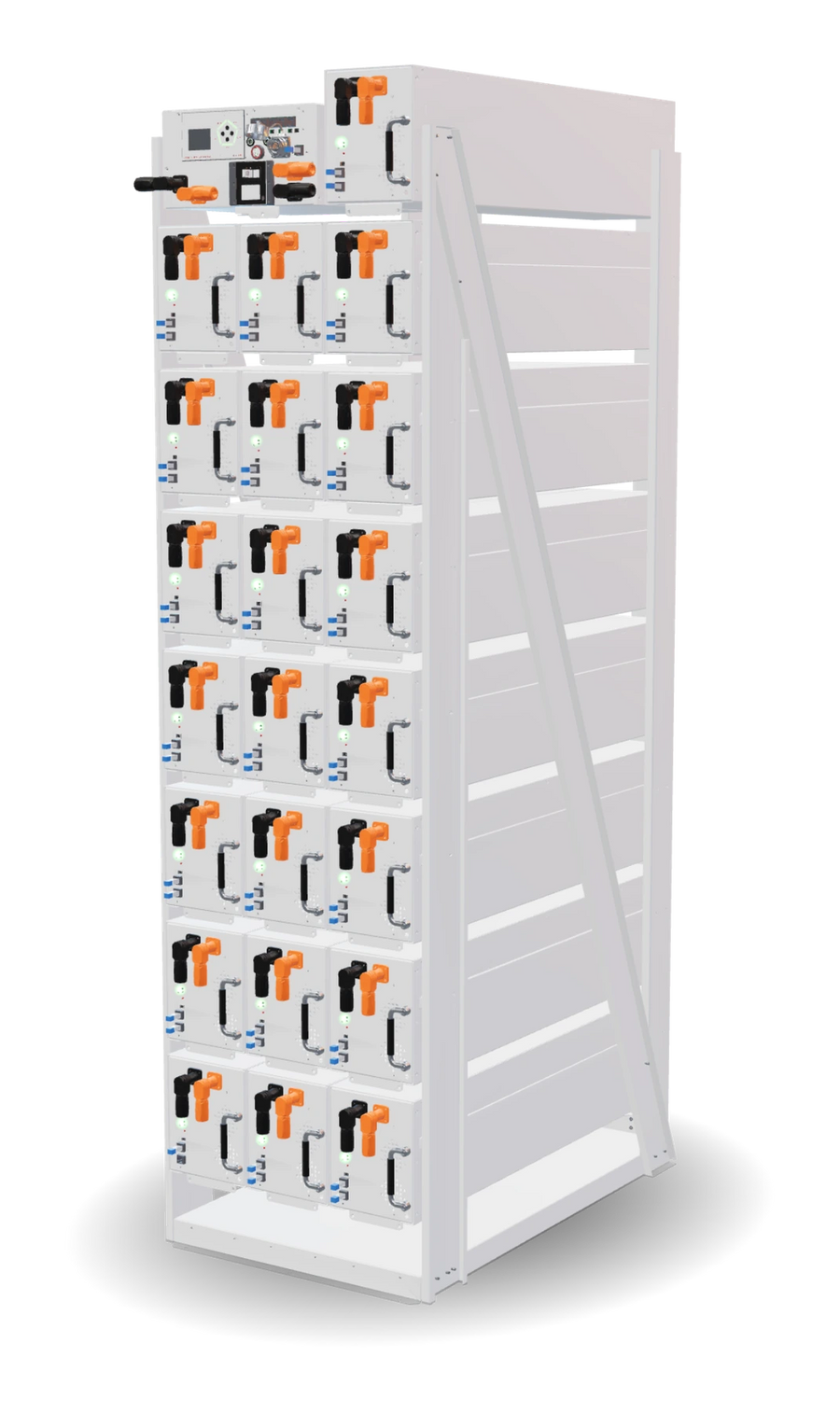

New · PowerFlex HV
Twenty-two 38.4 V LiFePO₄ modules, a smart rack controller and a slim steel frame — engineered in South Africa to put serious storage in a single footprint.
Modular by design
Start with six modules and grow as your load does. Each module slides in beside the controller and adds 38.4 V and 12.1 kWh — all the way to 22 modules and 844.8 V in one rack.
Plug in, power up
Short black-to-orange jumpers run down the right-hand column and snake back up the left pair — no long lead from the bottom of the rack to the top. The RJ45 comms daisy-chain follows the same path.
Modules seated — ready to connect
Built to fit
One 600 mm-wide rack holds up to 22 modules, the controller and all the cabling — 266 kWh on well under a square metre of floor.
Flexible layout
Running fewer modules? The controller drops to the level directly above the stack — no dead space, shorter cables and room to grow later.
Controller on level 8
Cell-level intelligence
The BMS in every module measures each cell's voltage plus two module temperature sensors, and reports up a daisy-chained comms link to the rack controller.
Bidirectional current limiting
Before the main contactor closes, current flows through a ±10 A limiter — gently pre-charging the inverter bus or charging a flat rack. Once the bus voltage matches the battery, full power is released.
Rapid comms failover
Racks share one communications line to the inverter. If the rack talking to the inverter goes silent, the next rack takes over the link automatically — the inverter never loses its battery.
Rack 1 is talking to the inverter
Scale out
Parallel PowerFlex racks on a single communications line to build storage for farms, factories and utility-scale sites.
The high-voltage line-up
Designed for commercial, industrial and agricultural sites where every minute of downtime costs money.
Up to 30% lower cost than traditional HV storage.
A scalable, modular high-voltage battery for commercial and industrial sites — simplified installation, proven LBSA engineering and dependable performance from 72.6 kWh to 266.1 kWh per rack.
Built for the elements. Engineered for fire.
Purpose-built for harsh agricultural, commercial and industrial sites. In our burn test the case burned for almost nine minutes — and the interior was still in perfect condition when we opened it.
Built tough. Thinks smart.
Wire-free, drawer-style racks with seamless CAN failover — if a master fails, a slave takes over instantly. Scale to 60 racks on one line and start heavy motors with 300 A peak support.

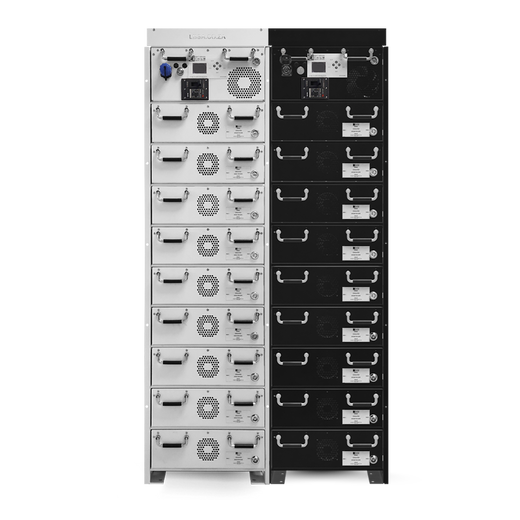

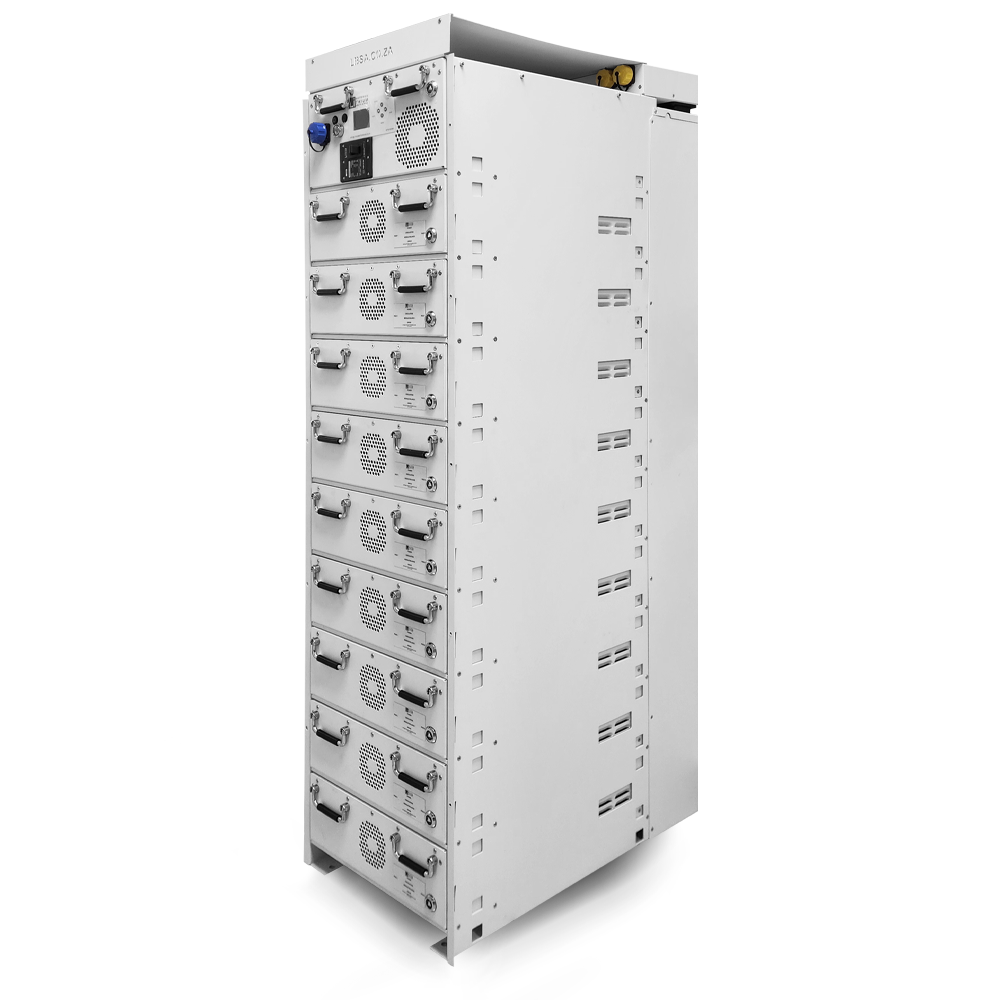

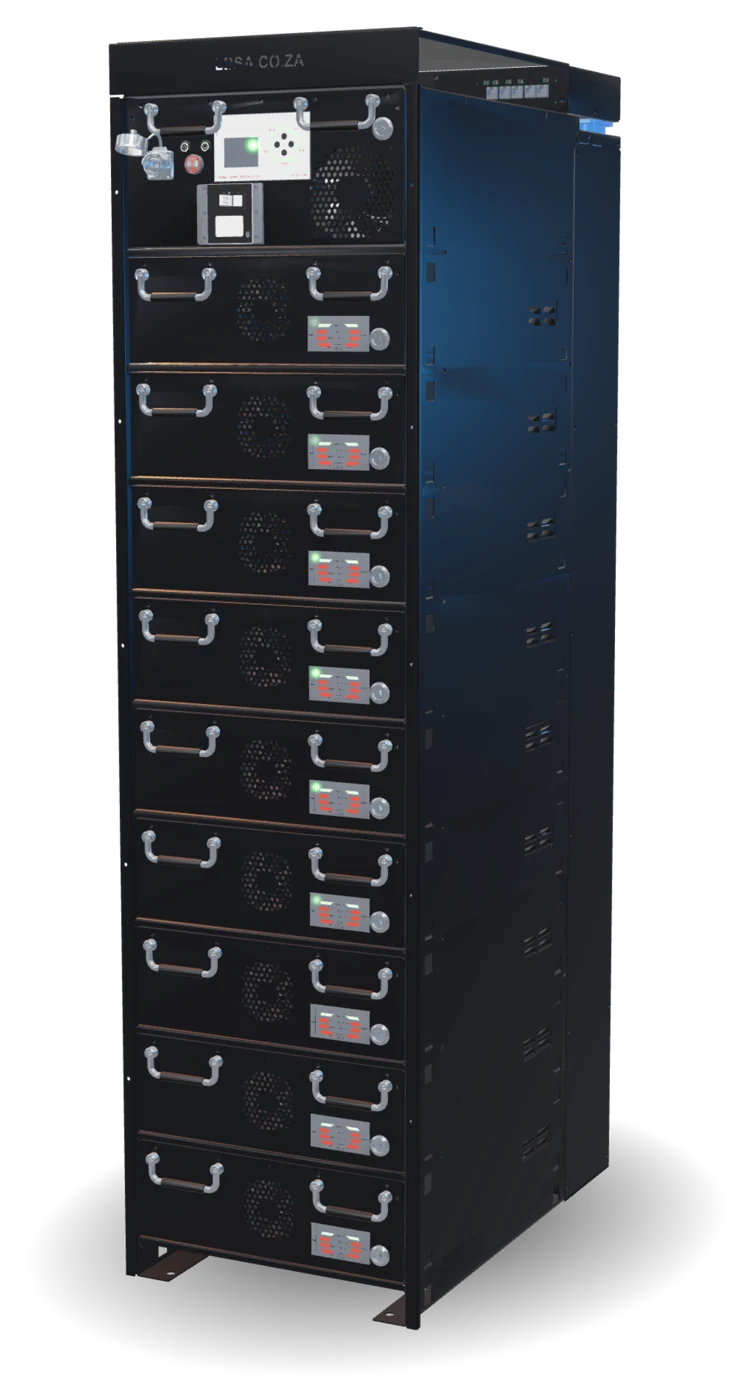

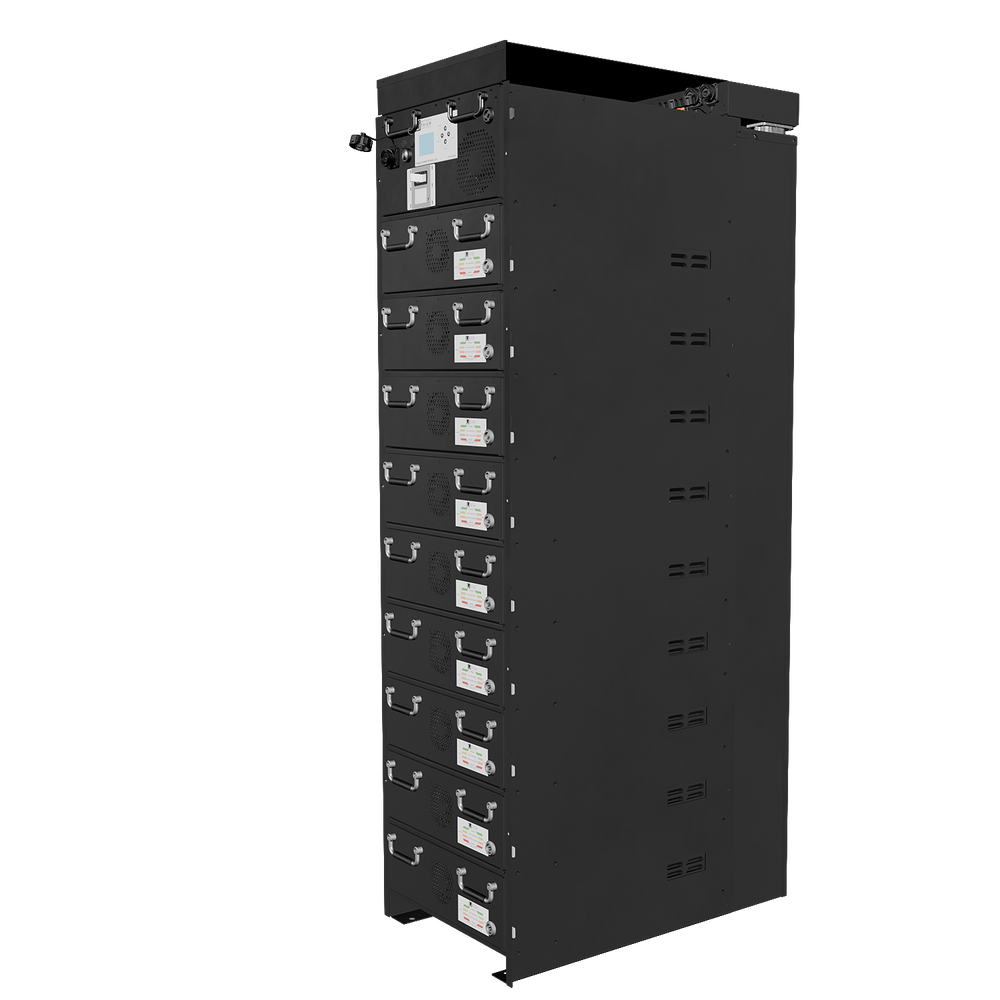

Rhino IntelliFlex HV
Nine 76.8 V LiFePO₄ drawers and a smart controller in one wire-free, proudly South African rack.
Wire-free by design
Every module is a drawer. A blind-mate connector at the back engages the rack’s high-voltage bus, balance bus and comms in one push — no cables to route or terminate.
Inside the rack
Behind the drawers, copper busbars link the modules in series, a shared two-wire balance bus runs past every level, and CAN comms run up the rack to the controller.
Module balancing
When one module’s highest cell passes 3.450 V while another’s stays below 3.400 V, the rack closes that module’s two balance contactors. Its extra energy runs up the shared balance bus into the controller’s 1000 W resistors for a 30-second window.
Scanning every module…
Bidirectional current limiter
Add a new rack to a live bank at a different voltage — no manual voltage matching, no tools. The limiter holds the equalising current in either direction until the rack voltages match, then the racks share the load.
By the numbers
Scalable in parallel
Up to 60 racks on a single CAN line
Per PowerFlex rack
22 modules · 844.8 V
Peak surge support
Starts motors, pumps & heavy loads
PowerFlex warranty
With unlimited cycles
Find your power
Engineered differently
Every LBSA high-voltage system is designed, assembled and supported in South Africa — with safety and serviceability engineered into the hardware, not bolted on.
If the master battery fails, a slave detects it on the CAN line and takes over as master instantly — the inverter keeps talking and the system keeps running. Parallel up to 60 racks on one line, up to 5.2 MW.

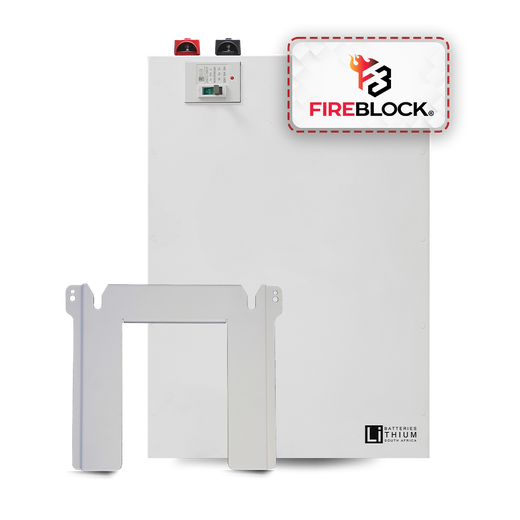

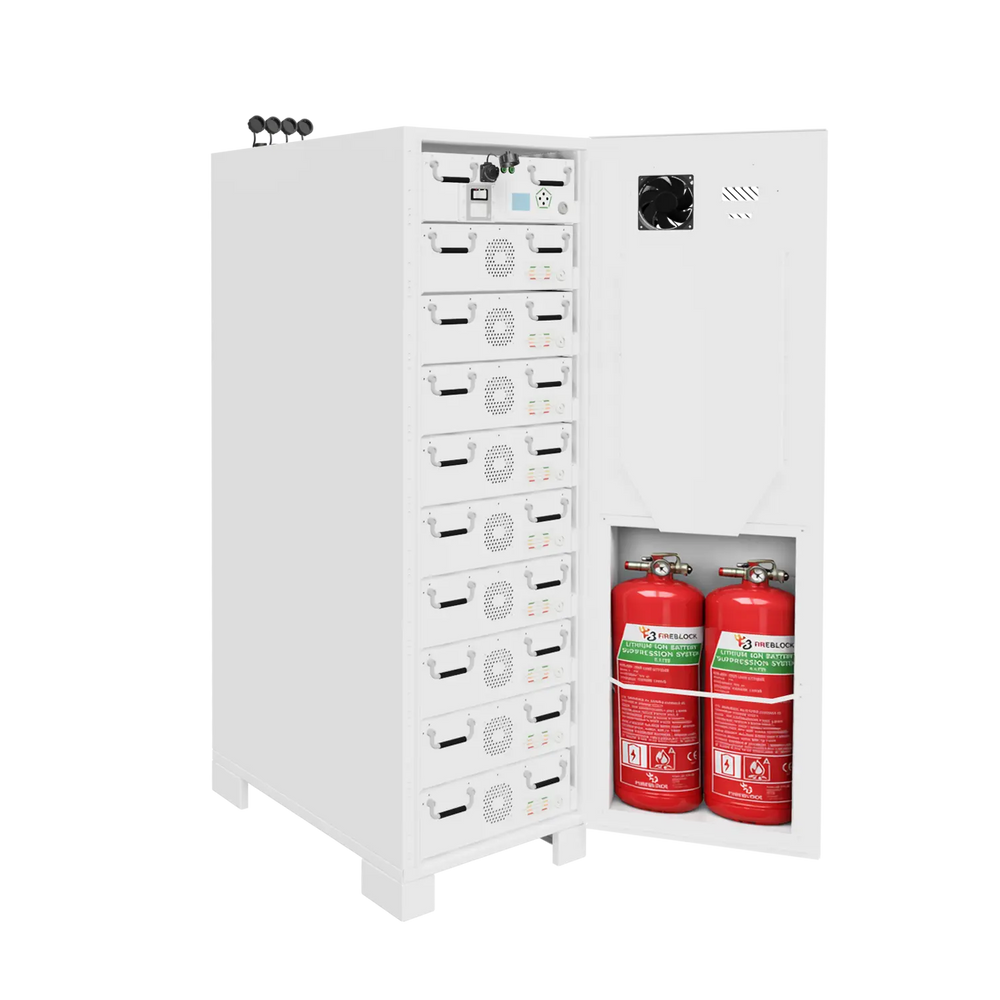

The controller integrates a Fireblock suppression mechanism that triggers automatically in the rare event of internal overheating or component failure.
Briefly supports up to 300 A during peak demand, so motors, pumps and other heavy inductive loads start and run reliably.
No inter-module cabling to route or get wrong — faster, safer commissioning with fewer failure points.
Modules and controllers slide in on drawer-style latch locks. No screws, no tools, much faster rack assembly.
Sunrise
Before the grid wakes up, your site already knows the plan: solar straight into the battery, the battery in charge of the pump, and zero peak-time grid power.
Solar charges
The PV array feeds the battery directly on the DC side — no extra inverter in between, no conversion losses.
Battery controls VSD
Over RS485, the battery sets the VSD’s speed and start/stop — matching pump speed to the sun while it keeps charging.
Peak window
When expensive peak tariffs kick in, the battery carries the pump on its own. The grid sits idle.
Autonomous
Your Sentinel schedule is stored inside the battery. It runs the pump on SoC thresholds — even if the internet drops.
Latched between thresholds — no rapid on/off cycling.
Savings
Solar pumping by day, battery pumping through the peak — the savings add up fast.
Illustrative: 100 kWp PV, 55 kW pump, one 266 kWh PowerFlex rack, example tariffs.

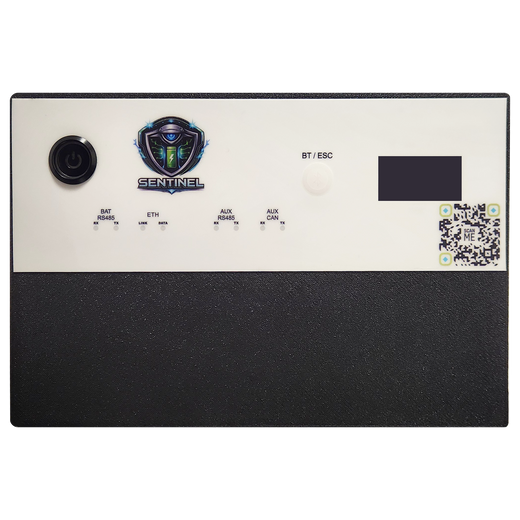

LBSA Sentinel
Sentinel gives installers and owners secure remote access to LBSA high-voltage systems — real-time performance, cell-level health and remote control, all in one app.
Business asset finance
Keep your business running during outages with reliable solar backup — without paying the full amount upfront.

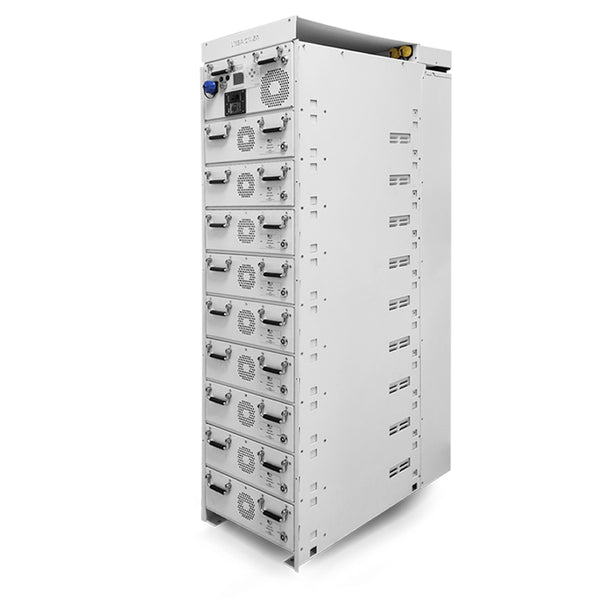

Rhino Intelliflex 71.8 kWh691 V · 104 Ah · 71.8 kWh
6-month option
R 42,591.00

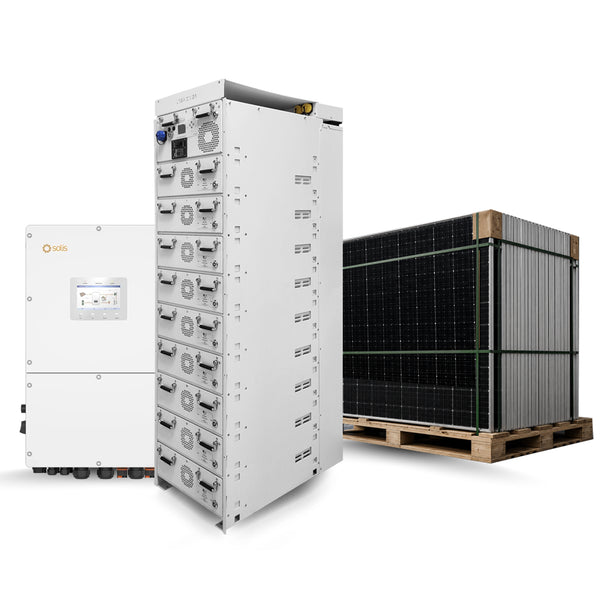

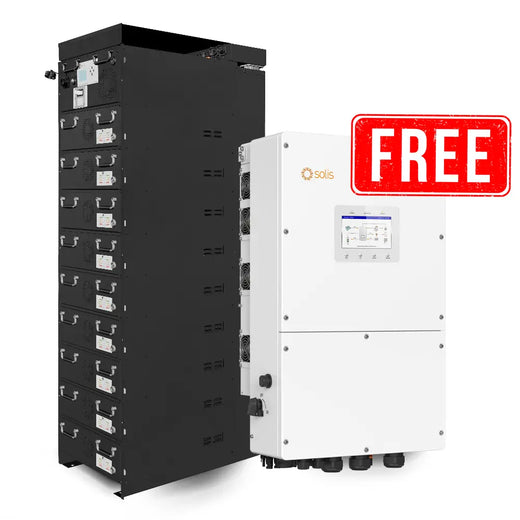

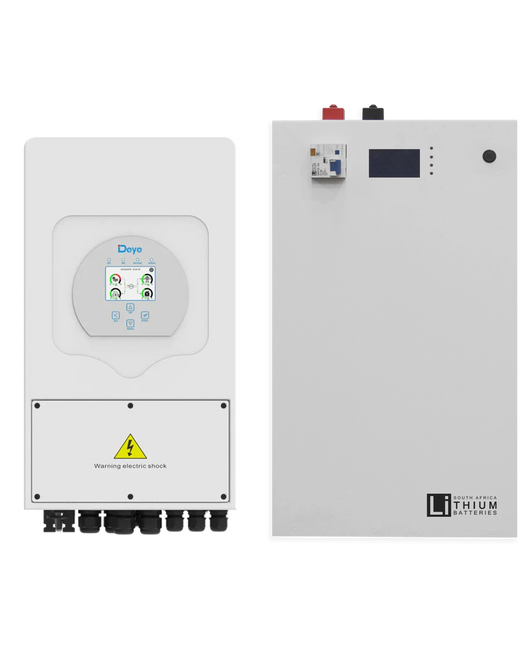

Combo 1Battery + inverter system
6-month option
R 82,280.00

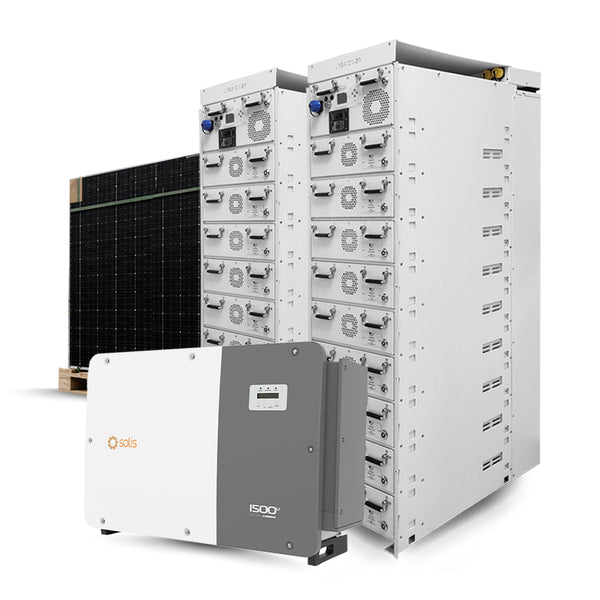

Combo 3Battery + inverter system
6-month option
R 191,342.00
Available to qualifying businesses only — not for individual or private purchases. The total is payable over a 6- or 12-month period.
Apply for business financeBuilt for every load
From farms and factories to homes and utilities — LBSA storage keeps critical loads running when the grid can't.
Recognised & trusted
Enlit Africa 2026
Recognised for safety-first battery engineering — including integrated fire suppression.
Read the newsCompatibility
The Rhino Intelliflex HV battery has officially been added to Victron Energy's high-voltage battery compatibility list.
Explore Rhino Intelliflex
Industry
LBSA has joined the South African Photovoltaic Industry Association to help advance solar PV and renewable energy across the country.
About LBSAProudly South African
Our batteries are built, tested and supported right here — by a team that understands South African conditions first-hand.
Newsroom
Introducing the LBSA Sentinel Monitor: Smarter Battery Monitoring, Greater ControlAt Lithium Batteries South Africa (LBSA), we continue to push the boundaries of intelligent energy storage solutions, and we are proud to introduce the LBSA Sentinel Monitor — a powerful monitoring platform designed to...Read article

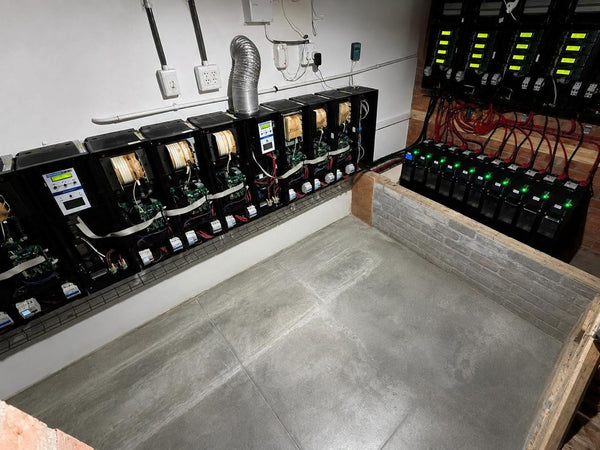

Powering South African Energy Innovation: Microgrid System Featuring LBSA Lithium Battery TechnologyRead article
LBSA Sentinel Training Session: Empowering Installers with Smarter Energy MonitoringRead article

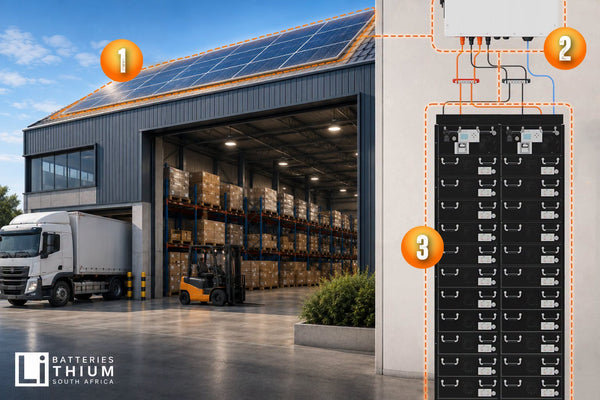

Generate. Convert. Store: The Smarter Way to Power Your Business with LBSA Rhino Intelliflex High Voltage Energy StorageRead article
LBSA Rhino Intelliflex High Voltage Battery Officially Added to Victron Energy Compatibility ListRead article
Ready when you are
Tell us about your site and loads — our engineers will size the batteries, inverter and protection for you.
