LBSA PowerFlex High Voltage Battery

THE LBSA POWERFLEX
HIGH VOLTAGE BATTERY

The LBSA PowerFlex High Voltage Battery delivers advanced high-voltage energy storage technology at a significantly reduced cost. Designed to provide reliable high-voltage performance for commercial and industrial applications, the PowerFlex offers up to 30% cost savings compared to traditional high-voltage battery solutions. With a scalable modular design, simplified installation, and proven LBSA engineering, the PowerFlex delivers dependable energy storage from 72.6kWh up to 217.7kWh without compromising on reliability, safety, or performance.

POWERFLEX HIGH VOLTAGE BATTERY RANGE

LEAD TIME ON THE BATTERIES ARE 4 - 6 WEEKS FROM PAYMENT
LBSA 230.4V 315Ah 72.6kWh LBSA Powerflex High Voltage Battery
LBSA 230.4V 315Ah 72.6kWh LBSA Powerflex High Voltage Battery
R 234,286.87
 LBSA 268.8V 315Ah 84.7kWh LBSA Powerflex High Voltage Battery
LBSA 268.8V 315Ah 84.7kWh LBSA Powerflex High Voltage Battery
R 266,986.87
 LBSA 307.2V 315Ah 96.77kWh LBSA Powerflex High Voltage Battery
LBSA 307.2V 315Ah 96.77kWh LBSA Powerflex High Voltage Battery
R 299,686.87
 LBSA 345.6V 315Ah 108.9kWh LBSA Powerflex High Voltage Battery
LBSA 345.6V 315Ah 108.9kWh LBSA Powerflex High Voltage Battery
R 332,386.87
 LBSA 384V 315Ah 121kWh LBSA Powerflex High Voltage Battery
LBSA 384V 315Ah 121kWh LBSA Powerflex High Voltage Battery
R 365,086.87
 LBSA 422.4V 315Ah 133kWh LBSA Powerflex High Voltage Battery
LBSA 422.4V 315Ah 133kWh LBSA Powerflex High Voltage Battery
R 397,786.87

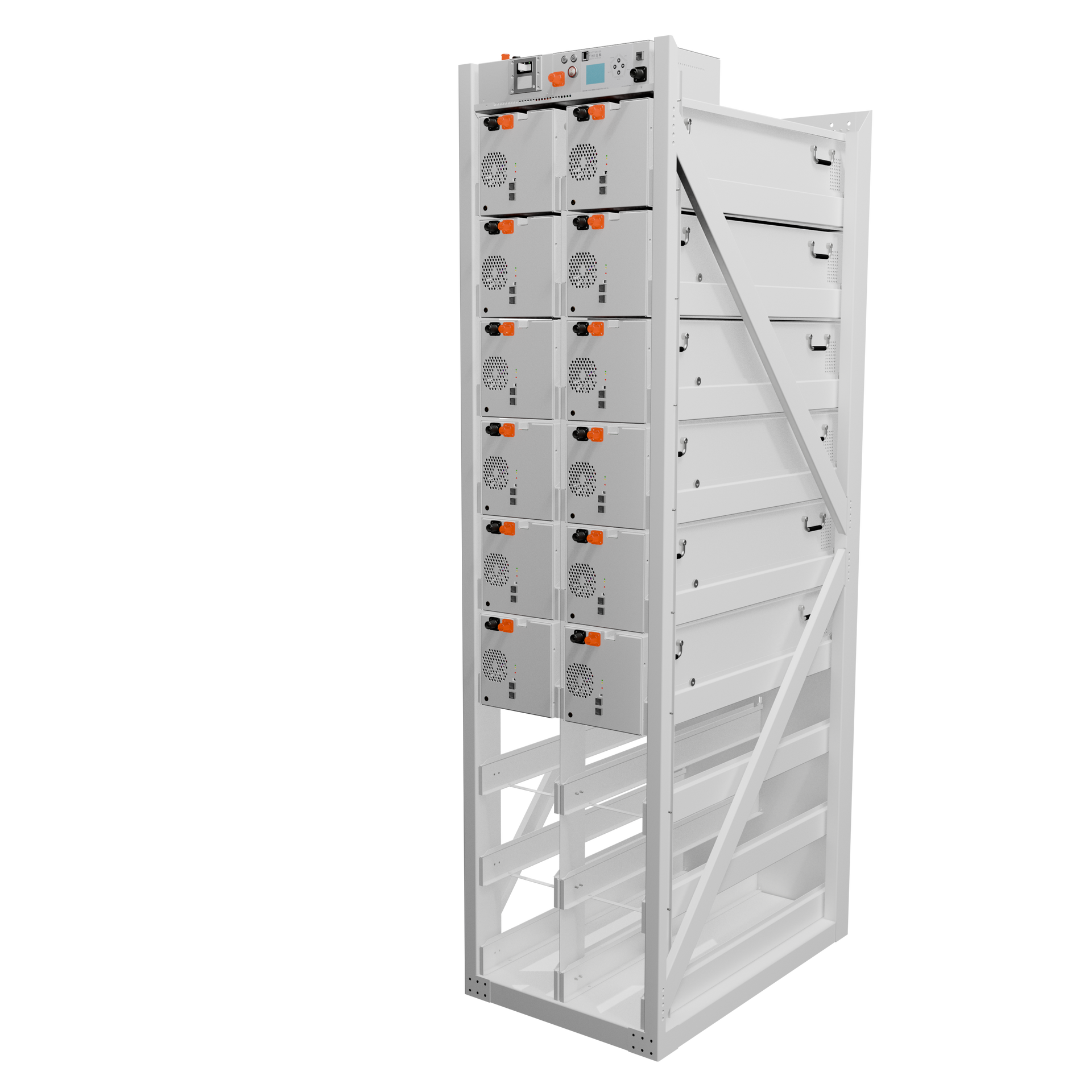

 LBSA 460.8V 315Ah 145.2kWh LBSA Powerflex High Voltage Battery
LBSA 460.8V 315Ah 145.2kWh LBSA Powerflex High Voltage Battery
R 430,486.87
 LBSA 499.2V 315Ah 157.2kWh LBSA Powerflex High Voltage Battery
LBSA 499.2V 315Ah 157.2kWh LBSA Powerflex High Voltage Battery
R 463,186.87

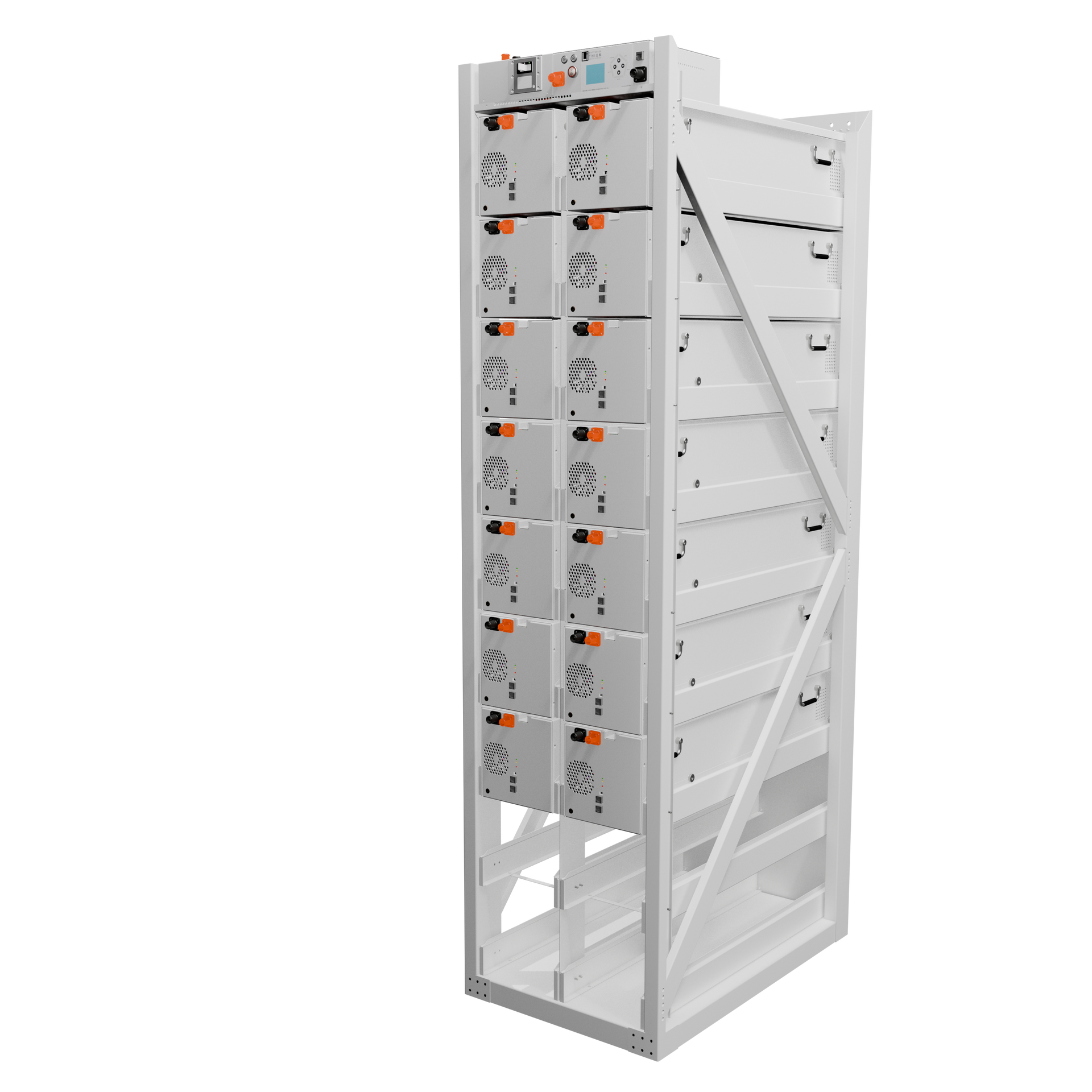

 LBSA 537.6V 315Ah 169.3kWh LBSA Powerflex High Voltage Battery
LBSA 537.6V 315Ah 169.3kWh LBSA Powerflex High Voltage Battery
R 495,886.87

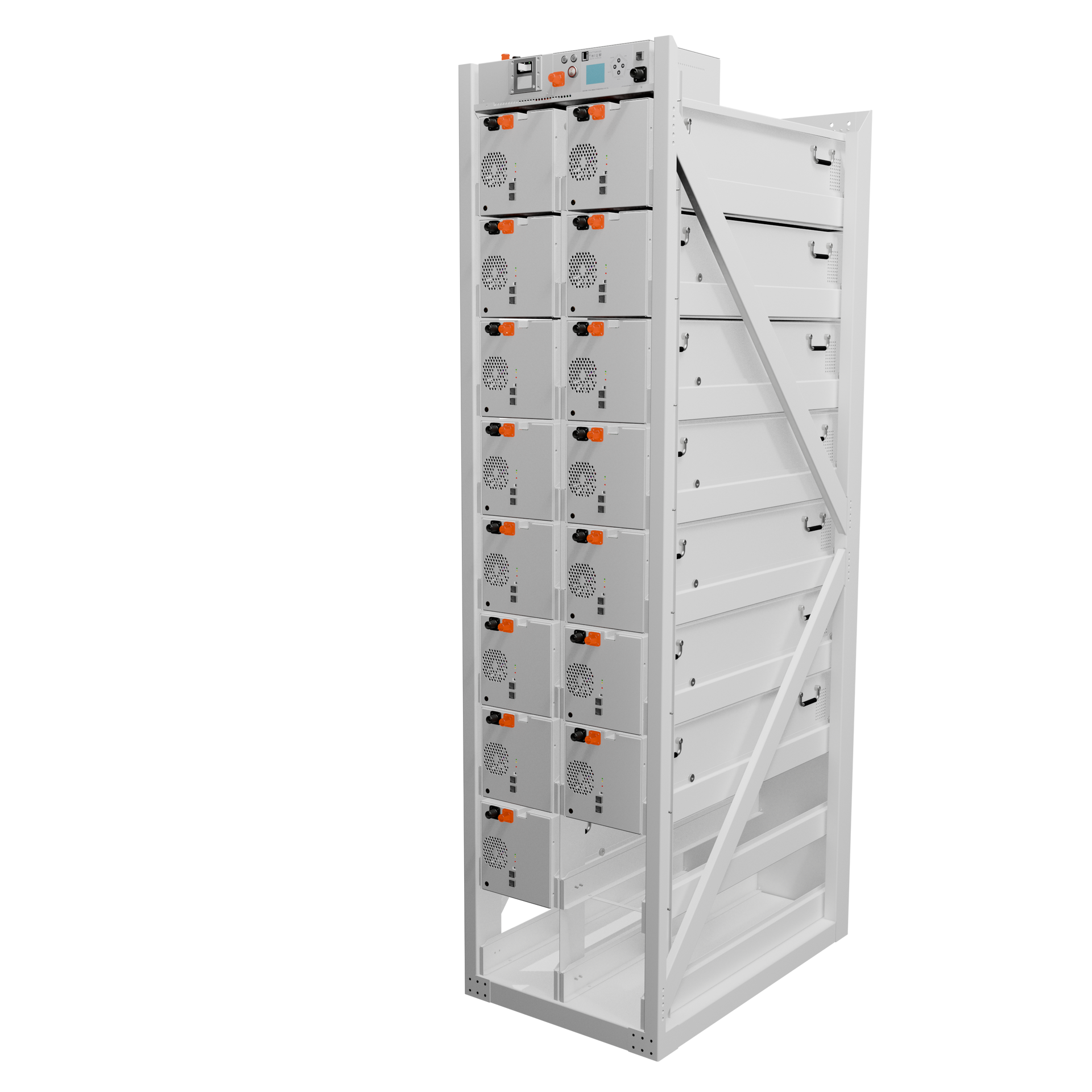

 LBSA 576V 315Ah 181.4kWh LBSA Powerflex High Voltage Battery
LBSA 576V 315Ah 181.4kWh LBSA Powerflex High Voltage Battery
R 528,586.87

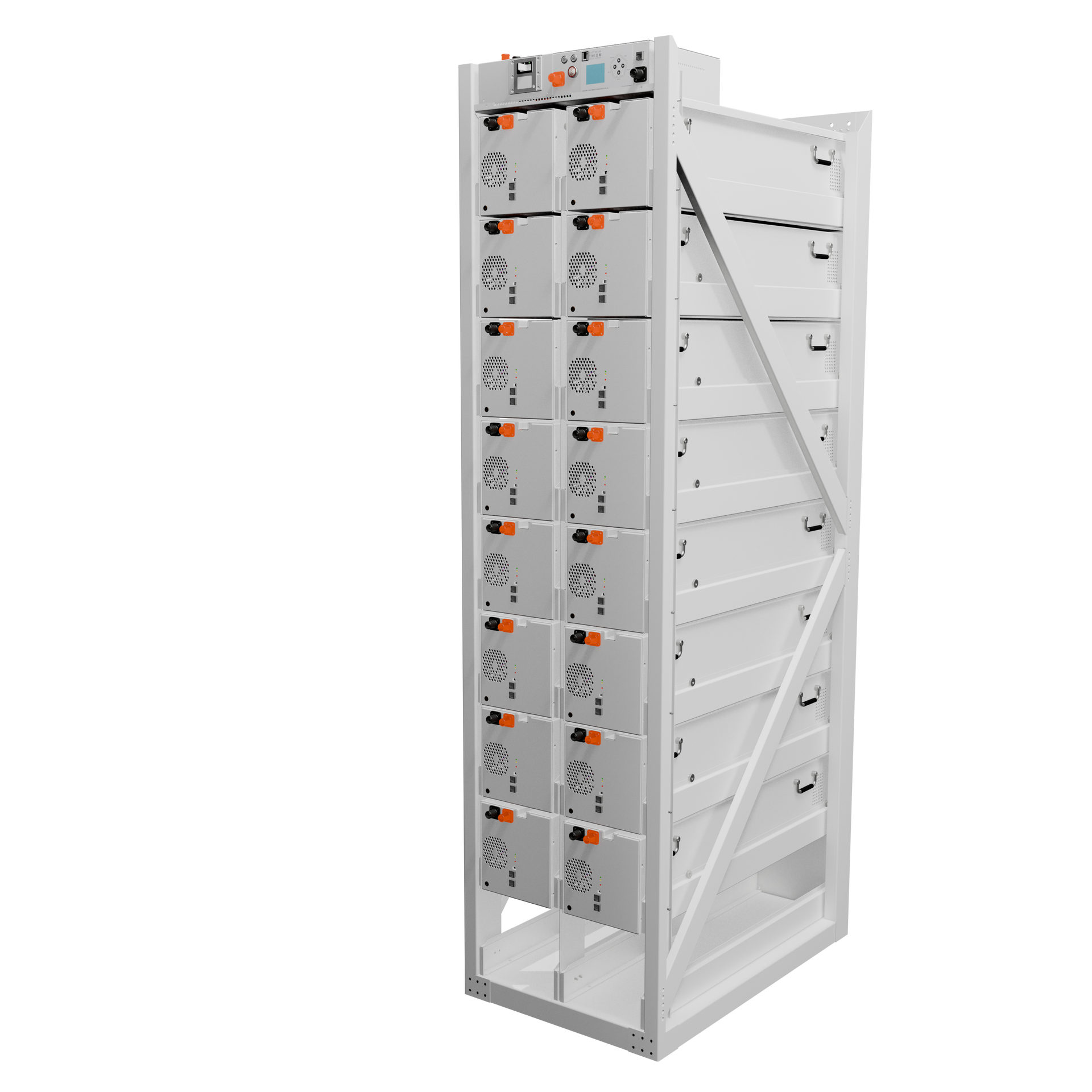

 LBSA 614.4V 315Ah 193.5kWh LBSA Powerflex High Voltage Battery
LBSA 614.4V 315Ah 193.5kWh LBSA Powerflex High Voltage Battery
R 561,286.87
 LBSA 652.8V 315Ah 205.6kWh LBSA Powerflex High Voltage Battery
LBSA 652.8V 315Ah 205.6kWh LBSA Powerflex High Voltage Battery
R 593,986.87
 LBSA 691.2V 315Ah 217.7kWh LBSA Powerflex High Voltage Battery
LBSA 691.2V 315Ah 217.7kWh LBSA Powerflex High Voltage Battery
R 626,686.87

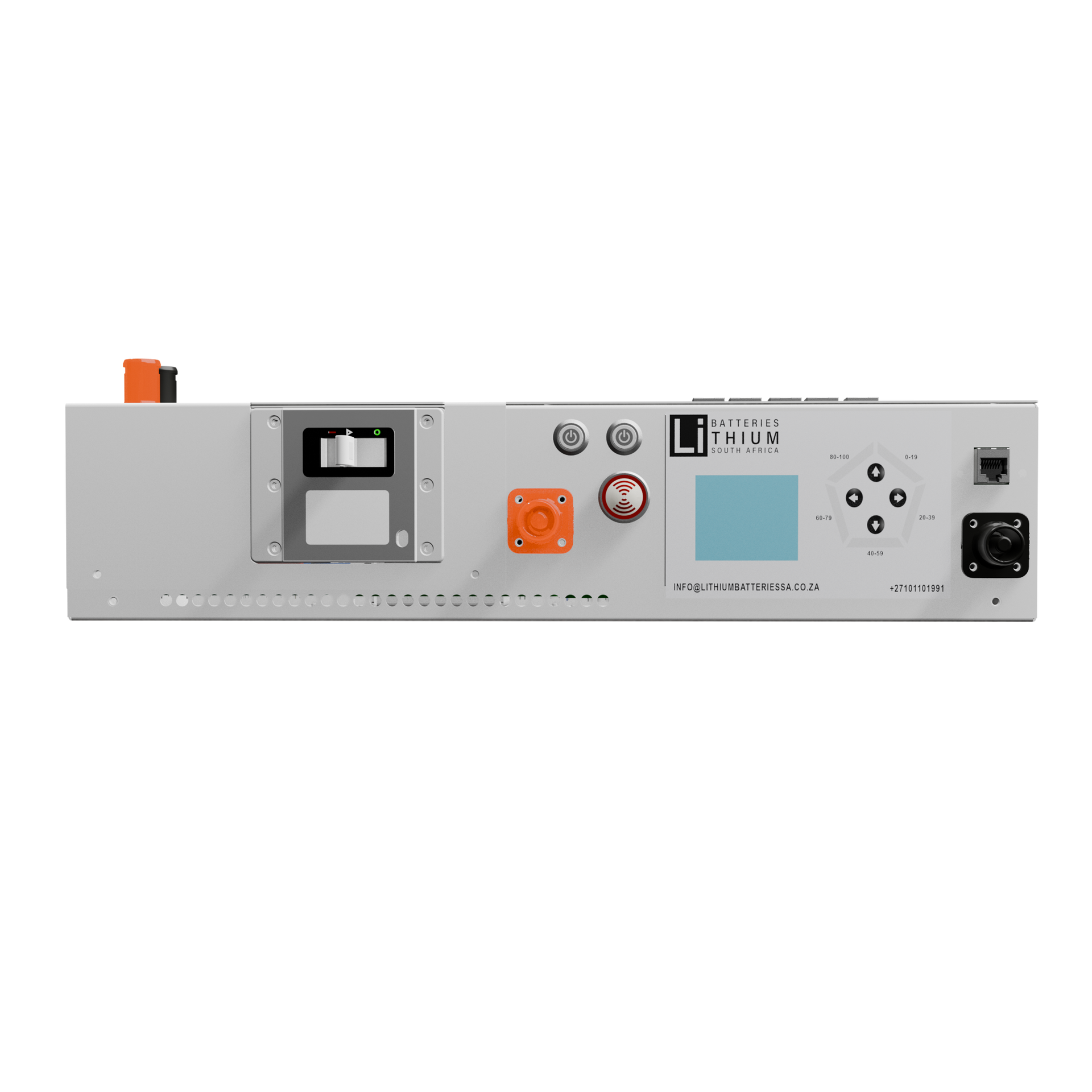

 Powerflex High Voltage Controller
Powerflex High Voltage Controller
R 26,086.87

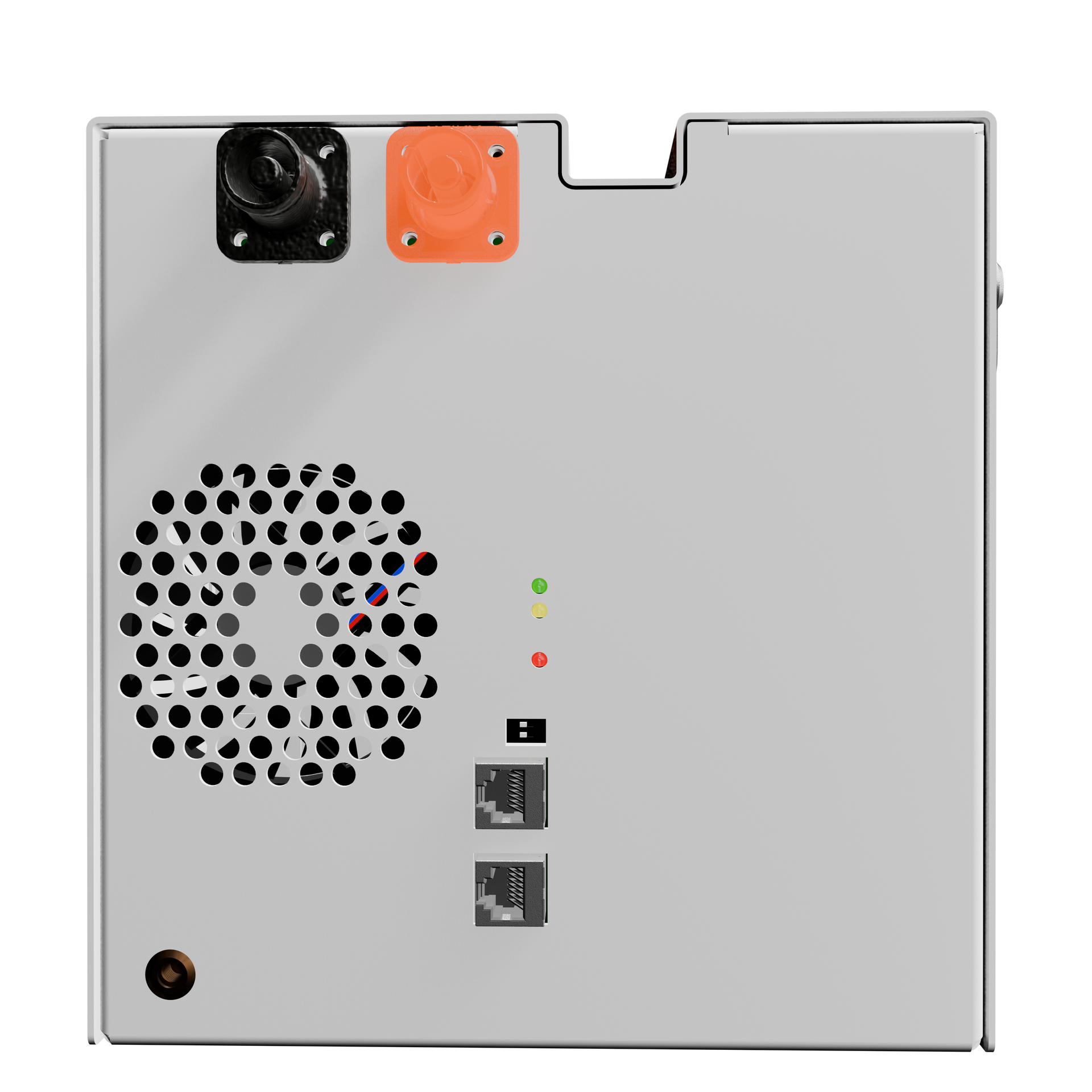

 Powerflex High Voltage Module 38.4 312Ah 12kWh
Powerflex High Voltage Module 38.4 312Ah 12kWh
R 32,700.00

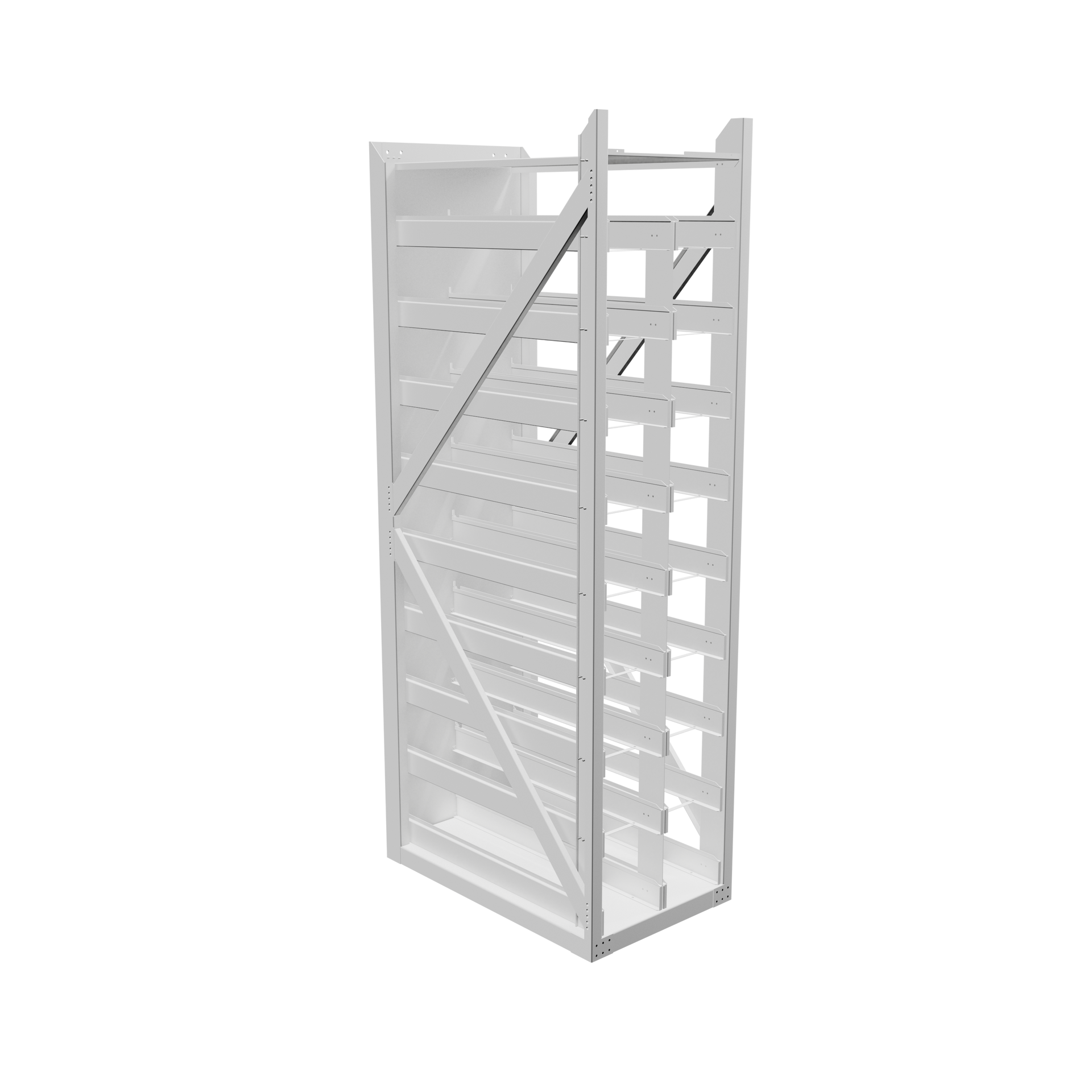

 Powerflex High Voltage Rack
Powerflex High Voltage Rack
R 12,000.00
Number of Modules Voltage Capacity Energy
6 x Modules 230.4V 315Ah 72.6kWh
7 x Modules 268.8V 315Ah 84.7kWh
8 x Modules 307.2V 315Ah 96.77kWh
9 x Modules 345.6V 315Ah 108.9kWh
10 x Modules 384V 315Ah 121kWh
11 x Modules 422.4V 315Ah 133kWh
12 x Modules 460.8V 315Ah 145.2kWh
13 x Modules 499.2V 315Ah 157.2kWh
14 x Modules 537.6V 315Ah 169.3kWh
15 x Modules 576V 315Ah 181.4kWh
16 x Modules 614.4V 315Ah 193.5kWh
17 x Modules 652.8V 315Ah 205.6kWh
18 x Modules 691.2V 315Ah 217.7kWh

WARRANTY

The LBSA PowerFlex High Voltage Battery is built for long-term reliability and dependable energy storage performance. Designed for demanding commercial and industrial applications, the PowerFlex is backed by a 10-year warranty with unlimited cycles, providing customers with confidence and peace of mind throughout the battery's lifespan.
