LBSA Battery User Manual

USER MANUAL - SOLIS INVERTER TO LBSA HV BATTERY

PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING AND RETAIN FOR FUTURE REFERENCE.

INTRODUCTION

This manual is intended to offer Lithium Batteries South Africa clients with Solis HV specific guidance when setting up communication between the battery and inverter. For further details pertaining to the setup of the Solis HV equipment not pertaining directly to the LBSA interface please refer to the various manuals available on the Solis website. Likewise, for further information pertaining to the LBSA batteries, please refer to the LBSA website to download the user manuals (https://lithiumbatteriessa.co.za/) or contact Lithium Batteries South Africa at 010 110 1991.

COMMUNICATION CABLE

The CAN cable used between the LBSA battery and the Solis Inverter is a straight pin to pin cable. The cable will go into the port on the LBSA battery labeled CAN to the port on the Deye inverter labeled BMS 485/ CAN.

Protocol Description
CAN Pin 4 : CAN-H
Pin 5: CAN-L
Pin 1, 2, 3, 6, 7, 8: NC

The ports numbered "2" are for the CAN connections. Ensure to connect each LBSA WFRE HV battery with CAN for the CAN failover feature to be utilized.

CAN Connection Ports

BATTERY SETUP WITH COMMUNICATION

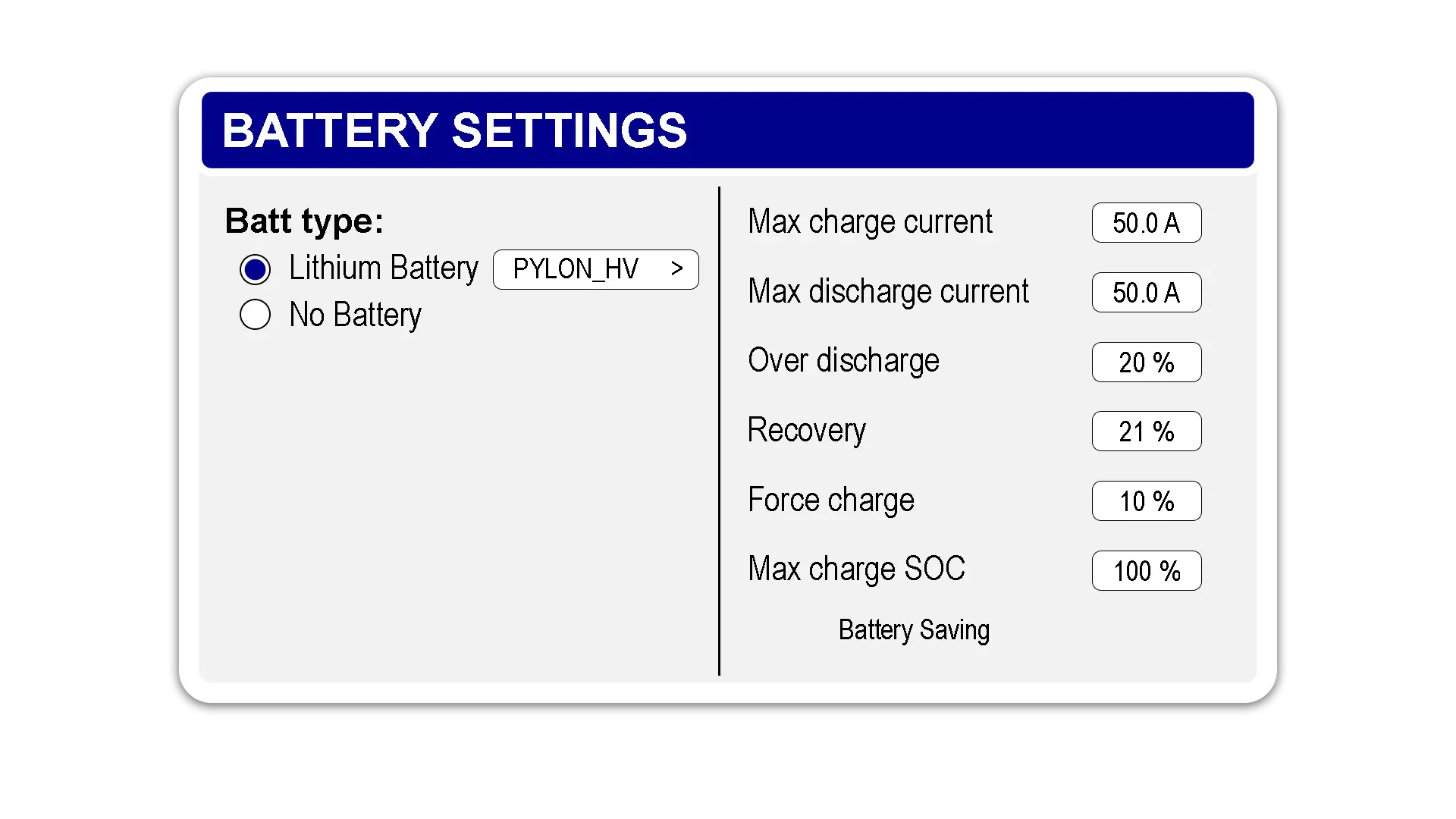

To establish communication between the battery(s) and inverter, go to the battery settings. The battery type must be set to Lithium and the Protocol as PYLON_HV. Set the charge and discharge current according to the specifications of the battery(s). The inverter will not allow higher values than it is rated for.

Battery Settings

The battery must be set to the Pylon HV protocol in the Parameters tab. Set the Dynamic Charge Voltage to 000 if it is not already set to this value.

Parameters Tab
FREQUENTLY ASKED QUESTIONS
Questions Answers
How do I size my battery to my Solis inverter?Every Inverter has a voltage range that must be adhered to. The max voltage of your pack must not exceed the max voltage of the inverter. The same goes for the minimum voltage, it cannot be below the inverter's minimum.

SIZING THE BATTERY FOR THE INVERTER

The battery cut off voltage must be above the inverter's minimum voltage. The battery bulk and float charging voltage must be below the inverter's maximum voltage.

Number of Modules Watt Hour Min Voltage Max Voltage
3x Modules (min)23,961.6Wh198 V252.9 V
4x Modules31,948 Wh264 V337.2 V
5x Modules39,935 Wh330 V421.5 V
6x Modules47,922 Wh396 V505.8 V
7x Modules55,909 Wh462 V590.1 V
8x Modules63,896 Wh528 V674.4 V
9x Modules71,883 Wh594 V758.7 V
10x Modules79, 870 Wh660 V843 V
11x Modules87, 857 Wh726 V927.3 V
How many batteries can you put on one Solis inverter?
You can put as many batteries as you want but if you only have a 50kw inverter, you will only be able to draw 50kw.

BATTERY RELATED WARNING

Code Description Troubleshooting
NO-Battery Battery is not connected Check on information page 1- Verify the battery voltage is within standards. Measure Battery Voltage.
OV-Vbackup Inverting Overvoltage Check whether the backup port wiring is normal.
BatName- FAIL Wrong battery brand selection Confirm whether the battery model selection is correct.
OV-VBatt Battery Overvoltage Verify battery voltage is within standards.
OV-VBatt-H/ OV-BUS-H (1051 DATA:0000) Battery overvoltage hardware failure/ VBUS Check if the battery circuit breaker is tripping. Check if the battery is damaged.

TECHNICAL SUPPORT AND TROUBLESHOOTING

Should any difficulties arise with the LBSA battery to Solis interface please contact sales@lbsa.co.za for assistance, or call the 24-hour support line at 061 476 4824.
