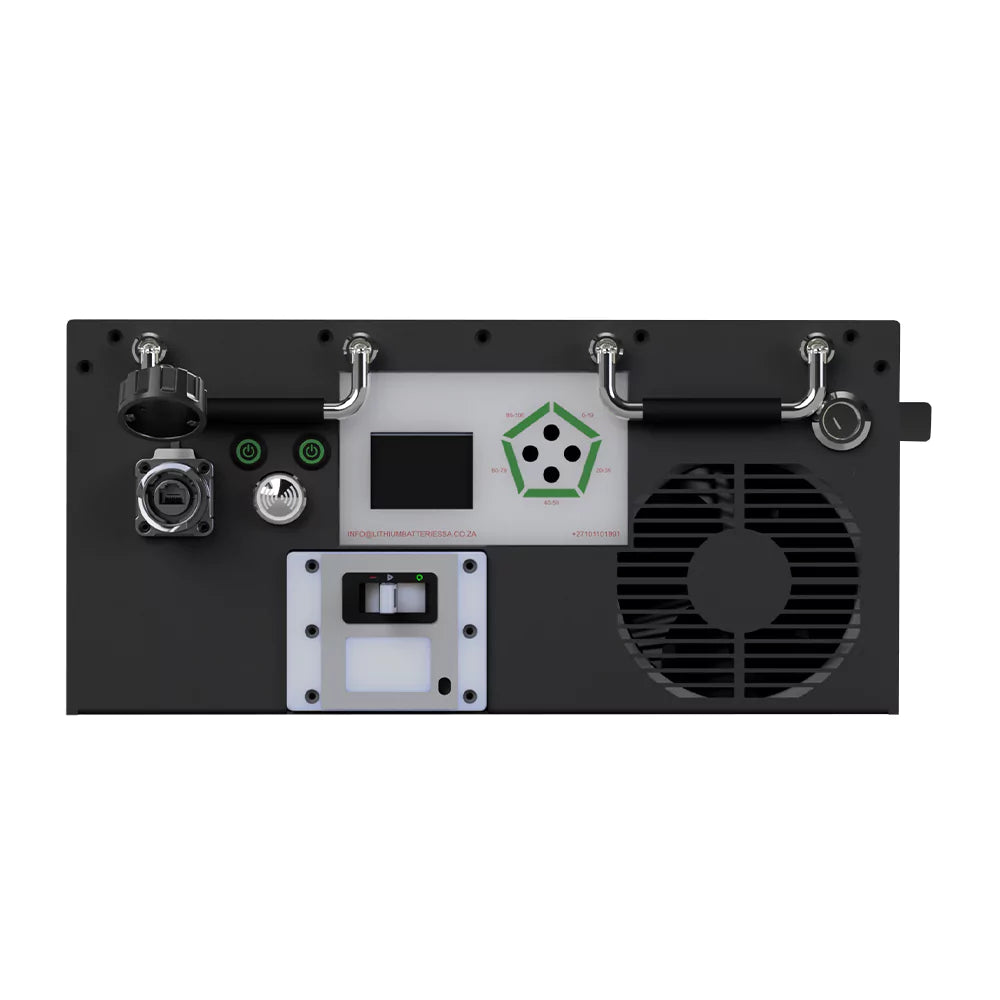

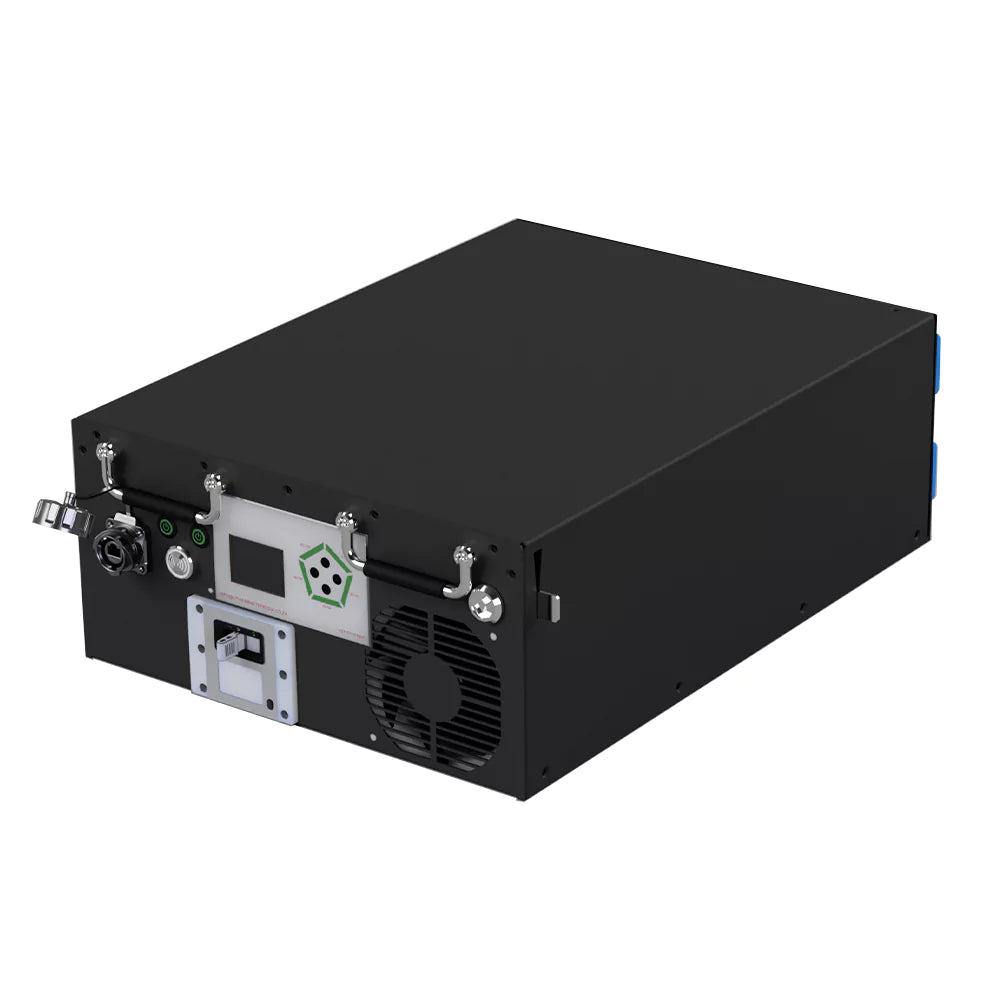

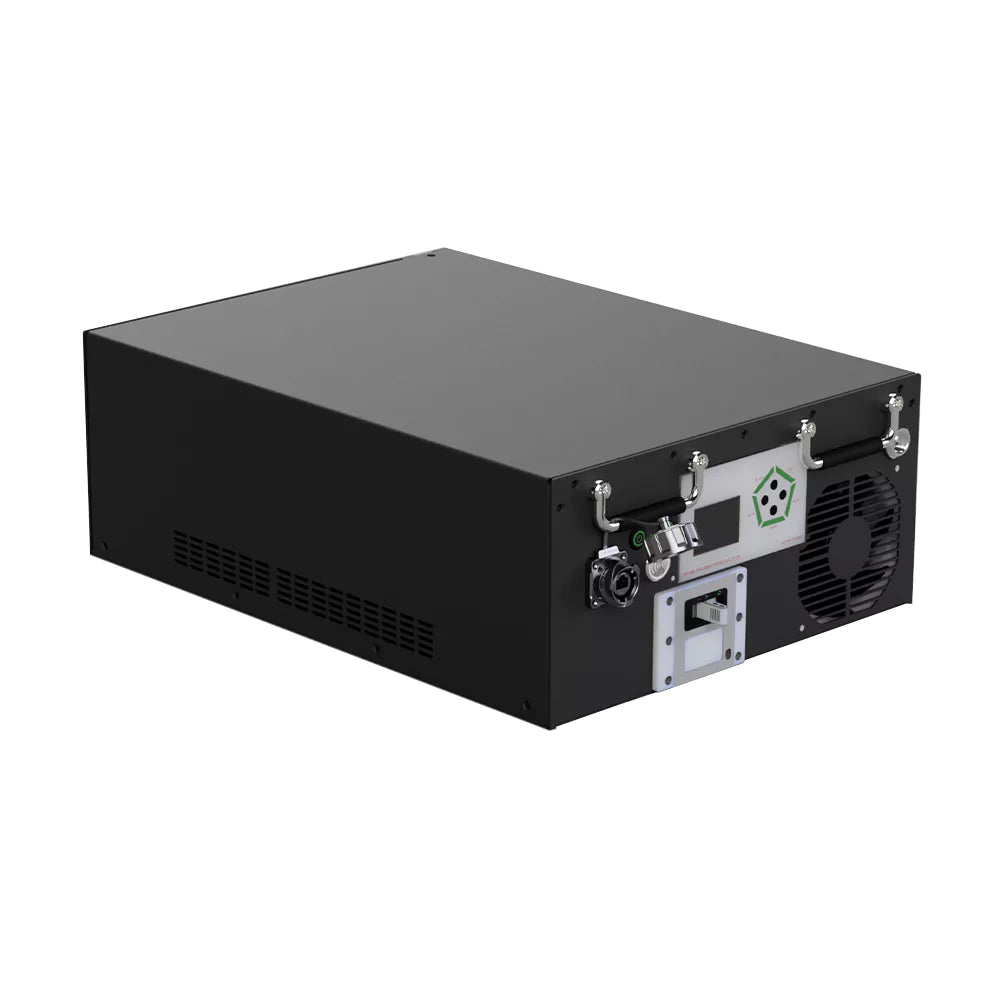

THE LBSA RHINO INTELLIFLEX HV
HV-104-WFRE CONTROLLER
Take full control of your high-voltage energy setup with the LBSA High-Voltage Controller. Engineered to work seamlessly with HV104-14WFRE modules, this smart controller optimizes charge and discharge cycles, monitors system performance in real time, and ensures safe, efficient operation. Whether you're managing a residential, commercial, or mixed-use installation, it gives you the precision, reliability, and flexibility needed to get the most from your energy storage system.
DETAILS
Discover what makes the LBSA High-Voltage Controller a smart choice for your energy management setup. Below you'll find key specifications, performance data, and compatibility details to help you plan and build your ideal high-voltage control system with confidence.
CONTROLLER TYPE | Smart High-Voltage Battery Management System |
MODULE COMPATIBILITY | HV104-14WFRE Modules |
COMMUNICATION | CAN Bus Communication Protocol |
MONITORING | Real-time System Performance Monitoring |
CONTROL FEATURES | Independent Charge and Discharge Control |
WARRANTY
The LBSA Rhino Intelliflex High Voltage Controller is built for long-term reliability and peace of mind, offering a 10-year warranty with unlimited cycles. Designed to deliver consistent performance year after year, it's a control solution you can depend on for both durability and efficiency.
KEY FEATURES
The LBSA Rhino IntelliFlex High Voltage Controller offers advanced battery management capabilities designed to work seamlessly with HV104-14WFRE modules. Built for reliability and efficiency, it provides independent charge and discharge control, real-time monitoring, and failover communication. The controller features hot battery adding capabilities and ensures safe, optimized operation of your energy storage system.
FAILOVER CAN COMMUNICATION |
HOT BATTERY ADDING |
INDEPENDENT CHARGE AND DISCHARGE CONTROL |
REAL-TIME SYSTEM MONITORING |
SMART BATTERY MANAGEMENT |
SAFETY AND RELIABILITY FOCUSED |
REVOLUTIONARY DESIGN FEATURES
Developed with a strong emphasis on safety, reliability, and efficiency; the LBSA Rhino Intelliflex HV Controller is equipped with features that guarantee ease of use and eliminate downtime. It includes failover CAN communication, hot battery adding, and independent charge and discharge control, among other capabilities.








CONTROLLER BASIC PARAMETERS
Discover the essential details of the LBSA High-Voltage Controller. Below, you'll find the controller's core specifications, electrical parameters, and control features, giving you the information you need to design, plan, and integrate a high-voltage control system with confidence.
CONTROLLER TYPE | Smart Battery Management System (BMS) |
COMMUNICATION INTERFACE | CAN Bus Protocol |
MODULE COMPATIBILITY | HV104-14WFRE Modules |
MAXIMUM MODULES SUPPORTED | Up to 11 Modules |
DIMENSIONS (mm) | 397.1 x 536.6 x 188.3 |
WEIGHT (Kg) | 9 Module Rack (Empty): 90 kg 11 Module Rack (Empty): 103 kg Controller: 24.20 kg Module: 64 kg |
CONTROL FEATURES | Independent Charge and Discharge Control |
MONITORING CAPABILITIES | Real-time Performance Monitoring |
COMMUNICATION PROTOCOL | Failover CAN Communication |
HOT SWAPPING | Hot Battery Adding Support |
SAFETY FEATURES | Fire Suppression Integration Ready |
OPERATING TEMPERATURE | 0 - 45 ℃ |
PROTECTION RATING | IP20 (Indoor Installation) |
POWER CONSUMPTION | < 10W Standby |
WARRANTY | 10 Years Standard |
DOWNLOADS
Access all the essential resources for the LBSA High-Voltage Controller in one place. Here, you'll find manuals, guides, and technical documents to help you install, operate, and maintain your controller system with confidence.
