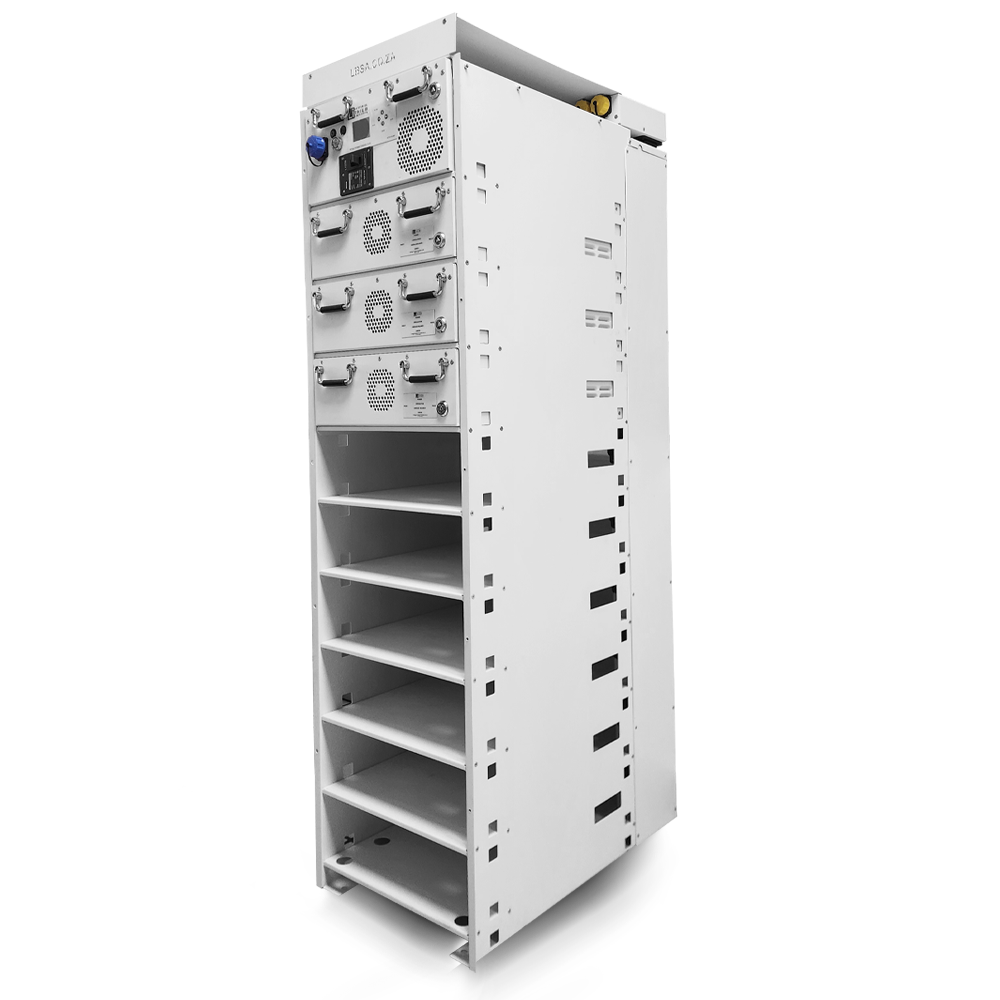

New White 230.4V 104Ah 23.9kWh LBSA Rhino Intelliflex High Voltage Battery
THE LBSA RHINO INTELLIFLEX HV
HV-104-WFRE BUILT UNITS
Meet the LBSA High-Voltage Built Unit – a fully assembled, ready-to-install energy storage solution combining a steel rack, HV104-14WFRE modules, and controller for a clean, high-efficiency system. With built-in click-connectors and a concealed main cable compartment, it offers a neat, cable-free appearance while ensuring hassle-free installation. Available in configurations from 3 to 11 modules, these units provide scalable energy storage for residential, commercial, industrial, or utility-scale applications. Designed for reliability and flexibility, each built unit delivers future-ready performance in a compact, organized, and fully integrated package.
WARRANTY
The LBSA Rhino Intelliflex High Voltage Rack is built for long-term reliability and peace of mind, offering a 10-year warranty with unlimited cycles. Designed to deliver consistent performance year after year, it's a rack solution you can depend on for both durability and efficiency.
KEY FEATURES
The LBSA Rhino IntelliFlex High Voltage Rack offers a robust housing solution designed to accommodate HV104-14WFRE modules and controllers. Built for scalability, it supports up to 9 or 11 modules (depending on configuration) with integrated cable management and click-connector technology. The rack features a concealed cable compartment ensuring longevity and reliability. Its steel construction facilitates easy integration into existing setups, making it suitable for various applications from residential to utility-scale.
| CABLE FREE POWER AND COMMUNICATION EASY. |
| BUILT-IN CLICK CONNECTORS. |
| SIMPLE MODULE INSTALLATION. |
| CONCEALED CABLE COMPARTMENT. |
| ROBUST STEEL CONSTRUCTION. |
| SCALABLE MODULE CAPACITY (UP TO 9 OR 11 MODULES). |
REVOLUTIONARY DESIGN FEATURES
Developed with a strong emphasis on safety, reliability, and efficiency; the LBSA Rhino Intelliflex HV Rack is equipped with features that guarantee ease of use and eliminate downtime. It includes failover CAN communication, hot battery adding, and independent charge and discharge control, among other capabilities.
WHAT'S INCLUDED WITH YOUR HIGH VOLTAGE BATTERY RACK
Every LBSA High-Voltage Battery Rack comes complete with all the essential components needed for installation and operation. Here's what you'll receive with your rack system to ensure a smooth setup and reliable performance.
RACK BASIC PARAMETERS
Discover the essential details of the LBSA High-Voltage Rack. Below, you'll find the rack's core specifications, physical parameters, and capacity features, giving you the information you need to design, plan, and integrate a high-voltage rack system with confidence.
| RACK CAPACITY | Standard: Up to 9 Modules + 1 Controller Extended: Up to 11 Modules + 1 Controller |
| RACK MATERIAL | Robust Steel Construction |
| DIMENSIONS (mm) RACK | 444.6 x 723.5 x 1648.3 |
| WEIGHT (Kg) | 9 Module Rack (Empty): 90 kg 11 Module Rack (Empty): 103 kg Controller: 24.20 kg Module: 64 kg |
| CABLE MANAGEMENT | Concealed Main Cable Compartment |
| CONNECTION SYSTEM | Built-in Click-Connectors |
| INSTALLATION TYPE | Floor Standing |
| MOUNTING | Seismic-Resistant Anchor Points |
| COOLING SUPPORT | Optimized Air Flow Design |
| MODULE COMPATIBILITY | HV104-14WFRE Modules |
| CONTROLLER SUPPORT | 1 Controller Per Rack |
| EXPANSION CAPABILITY | Modular Design for Easy Expansion |
| SAFETY FEATURES | Fire Suppression Ready |
| OPERATING TEMPERATURE | 0 - 45 ℃ |
| PROTECTION RATING | IP20 (Indoor Installation) |
| WARRANTY | 10 Years Standard |
3 TO 11 MODULES ENSURE COMPATIBILITY WITH YOUR RACK REQUIREMENTS
Easily scale your energy system with 3 to 11 LBSA High-Voltage Modules per rack. This range allows you to match your energy requirements and rack capacity needs, giving you the flexibility to build a high-voltage setup that's both efficient and perfectly suited to your energy demands. Choose the Standard Rack for up to 9 modules or the Extended Rack for up to 11 modules.
| 3 x MODULES PER RACK | 23,964 Wh |
| 4 x MODULES PER RACK | 31,948 Wh |
| 5 x MODULES PER RACK | 39,935 Wh |
| 6 x MODULES PER RACK | 47,922 Wh |
| 7 x MODULES PER RACK | 55,909 Wh |
| 8 x MODULES PER RACK | 63,896 Wh |
| 9 x MODULES PER RACK | 71,883 Wh (Standard Rack Maximum) |
| 10 x MODULES PER RACK | 79,870 Wh (Extended Rack Only) |
| 11 x MODULES PER RACK | 87,857 Wh (Extended Rack Maximum) |
DOWNLOADS
Access all the essential resources for the LBSA High-Voltage Rack in one place. Here, you'll find manuals, guides, and technical documents to help you install, operate, and maintain your rack system with confidence.
