PLEASE CONFIRM STOCK ON PRODUCTS BEFORE PAYMENT.

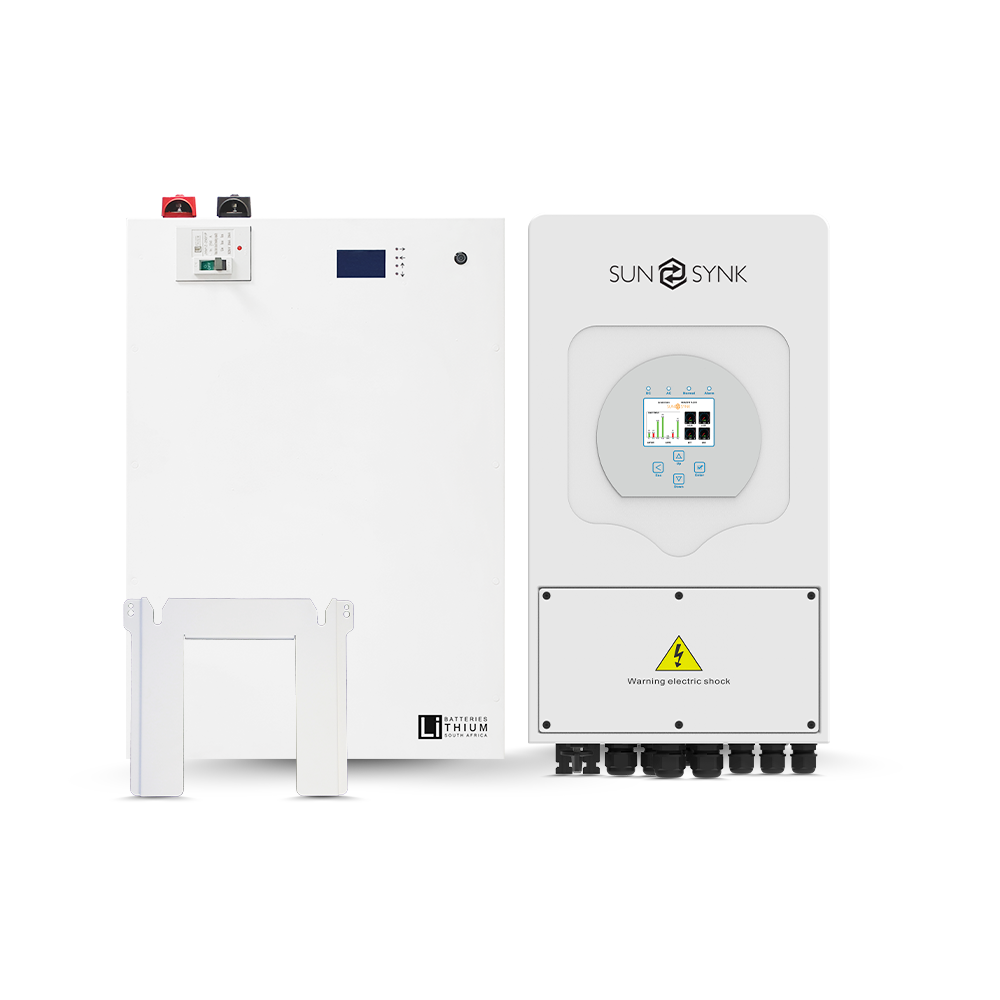

SUNSYNK INVERTER + LBSA
51.2V 104Ah 10.6kWh BATTERY COMBO
Experience the perfect solar solution with our SunSynk Inverter + LBSA 51.2V 104Ah 10.6kWh Battery Combo – a complete, integrated system combining high-efficiency SunSynk inverters with our premium LBSA battery storage. Engineered for optimal performance and reliability, this combo package delivers seamless energy conversion, intelligent monitoring, and maximum power output for residential and commercial applications. Built with SunSynk technology and LBSA battery expertise, it provides a turnkey solution for your renewable energy needs.
DETAILS
Discover what makes the LBSA 51.2V 104Ah 10.6kWh LiFePO₄ Wall Mount Battery the smart choice for home and backup energy storage. Below, you'll find key specifications, performance details, and compatibility information to help you select and integrate the perfect low-voltage solution for your system with confidence.
| BULK + ABSORPTION | 56.2V |
| FLOAT | 56.2V |
| LOW VOLTAGE CUT-OFF | 44V |
| CHARGE FOR PARALLEL UNITS | (100A*UNITS IN PARALLEL*) |
| DISCHARGE FOR PARALLEL UNITS | (200A*UNITS IN PARALLEL*) |
WARRANTY
10 YEAR WARRANTY ON LBSA BATTERY / 4500 CYCLES (9000 CYCLES ON BMS DISPLAY)
MODULE BASIC PARAMETERS
Learn more about the essential parameters of the LBSA 51.2V 10.6kWh LiFePO₄ Battery. Explore its electrical characteristics, protective features, and operating performance to ensure your solar or UPS setup is efficient, reliable, and ready for long-term energy independence.
| MODULE NOMINAL VOLTAGE (V) | 51.2V |
| MODULE NOMINAL CAPACITY (Ah) | 208Ah |
| MODULE NOMINAL POWER (kWh) | 10.6kWh |
| DIMENSIONS (mm) | 750mm x 135mm x 520mm |
| WEIGHT (Kg) | 86KG |
| DISCHARGE CUT-OFF VOLTAGE (V) | 44V |
| CHARGE VOLTAGE (BULK + ABSORPTION) (V) | 56.2V |
| MAX DISCHARGE CURRENT (A) | 200A |
| RECOMMENDED CHARGE CURRENT | 100A |
| COMMUNICATION INTERFACE | CAN |
| CONFIGURATION | 2P 16S |
| OPERATING TEMPERATURE | 0 - 50 ℃ (CHARGE) -20 - 50 ℃ (DISCHARGE) -20 - 55 ℃ (STORAGE) |
| CELL CHEMISTRY | LITHIUM IRON PHOSPHATE (LiFePO4) |
| CYCLE LIFE | ≥80% CAPACITY STATE AFTER 4800 CYCLES AT 0.5C, 25℃, 100% DOD |
| IP LEVEL | IP 20 |
COMPATIBLE BATTERY LIST
Click on the logo below for the SunSynk Battery Compatibility List.
DOWNLOADS
Access all the essential resources for the SunSynk Inverter + LBSA 51.2V 104Ah 10.6kWh Battery Combo in one place. Here, you'll find datasheets, manuals, and technical documents to help you install, operate, and maintain your solar inverter and battery system with confidence.
related products
LiFePo4

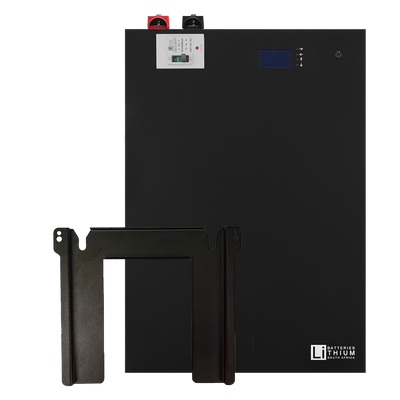

10.6 kWh 51.2v 208Ah LiFePO4 Lithium Iron Phosphate Wall Mount Solar UPS Battery
