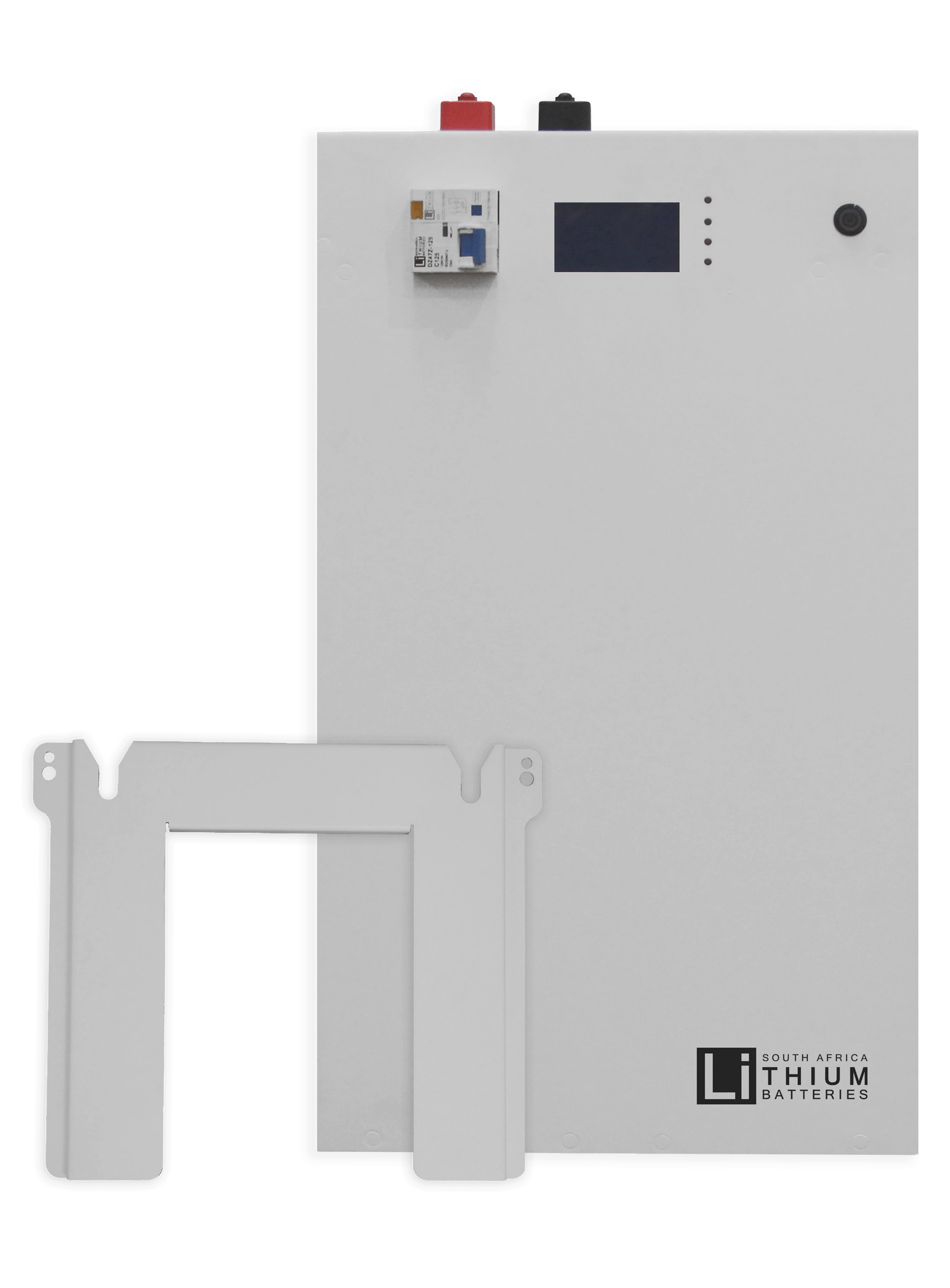

NEW WHITE 25.6v 104Ah 2.6kWh LiFePO4 Lithium Iron Phosphate Wall Mount Solar UPS Battery
LBSA lithium iron phosphate (LiFePO4) battery pack is a household
renewable energy storage solution developed and produced by Lithium Batteries SA. After full installation, it is a low-voltage DC battery system with an operating voltage of 51.2V, and works with a low-voltage inverter to realize the goal of energy storage for home application.
BATTERY USER MANUAL
Click on the inverter below to view our battery on their "Approved battery" list.
|
 |
 |
 |
 |
-style="text-align: center;">
LUXPOWER APPROVED LIST
DEYE APPROVED LIST
SUNSYNK APPROVED LIST
BATTERY USER MANUAL
2.6KW Max Continuous Load
10 Year or 4500 cycles (9000 Cycles on BMS display) Warranty
Applicable for all batteries purchased after 2022/11/21
Details:CAN Bus Comms: Victron, Growatt, Sunsynk, DEYE
Bulk + Absorption: 28v
Float : 28v
Low Voltage Cut Off: 22v
Maximum continuous Charge/Discharge For Single Unit: 75A (Recommended 50A)
Charge for Parallel units: (50*"Units In parallel") / 2
Discharge for Parallel units: 100A * "Units in parallel
Display Definitions:
OV - Warn: high pressure alarm
OV - Prot: over-voltage protection
UV - Warn: low pressure alarm
UV - Prot: under-voltage protection
OT-Warn：High temperature alarm
OT-Prot：Over temperature protection
UT - Warn: low temperature alarm
UT - Prot: low temperature
OC - Warn: over-current alarm
OC - Prot: over-current protection
CAPA - Warn: remaining capacity of the alarm
OFF - USE: failure alarm
SCP：Short circuit protection
