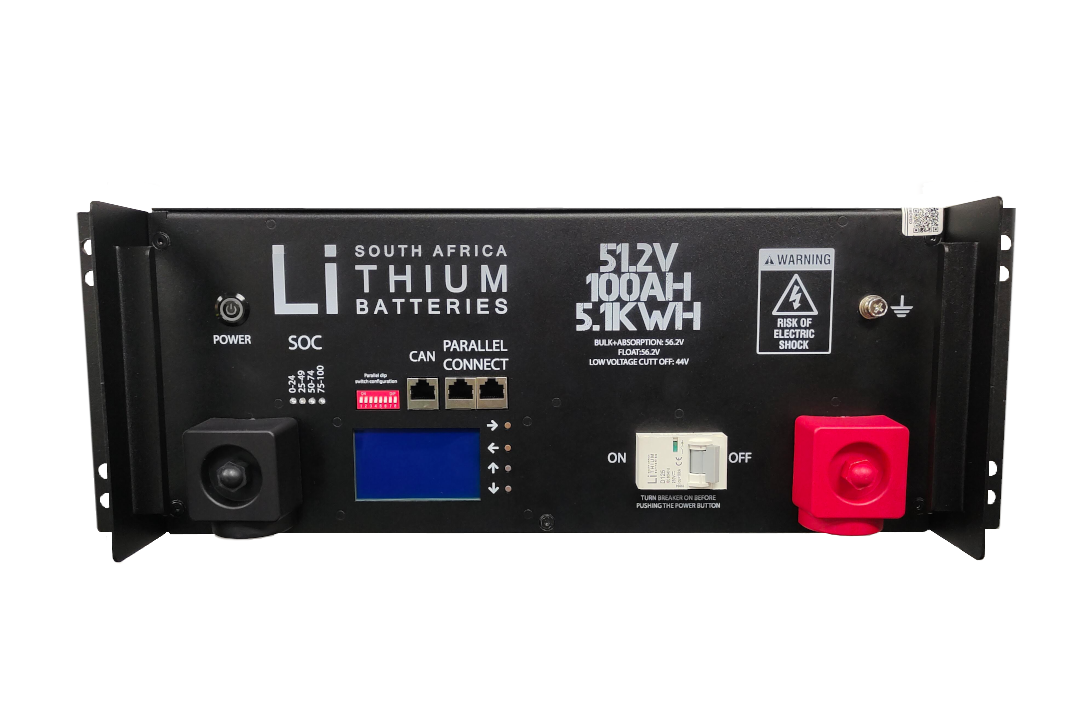

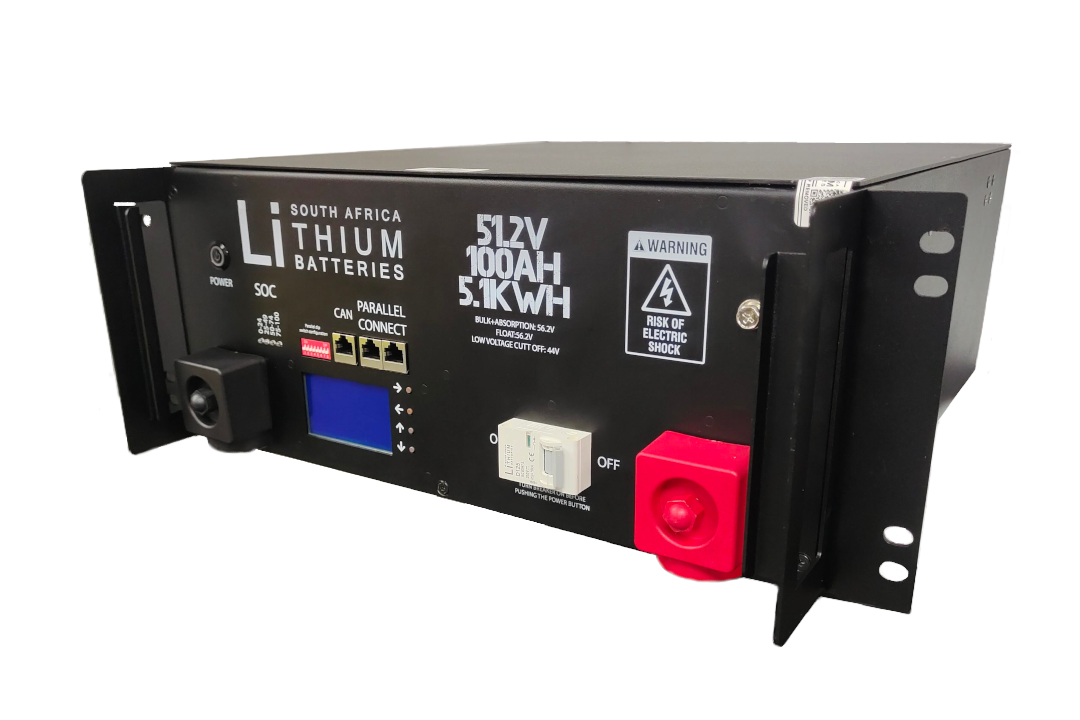

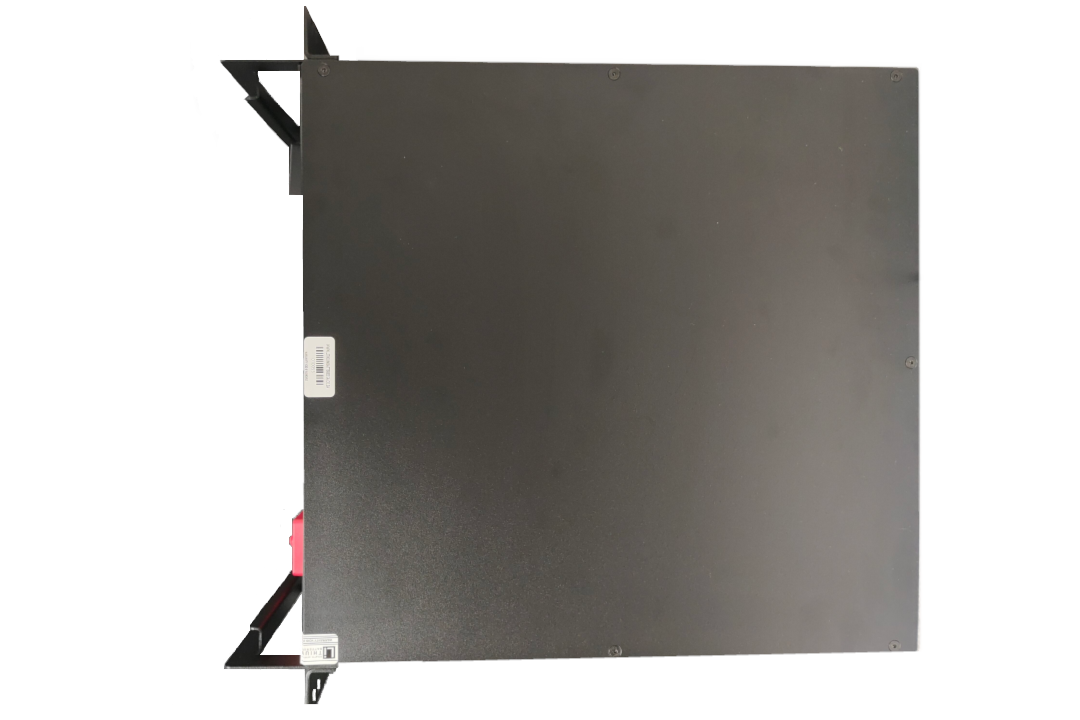

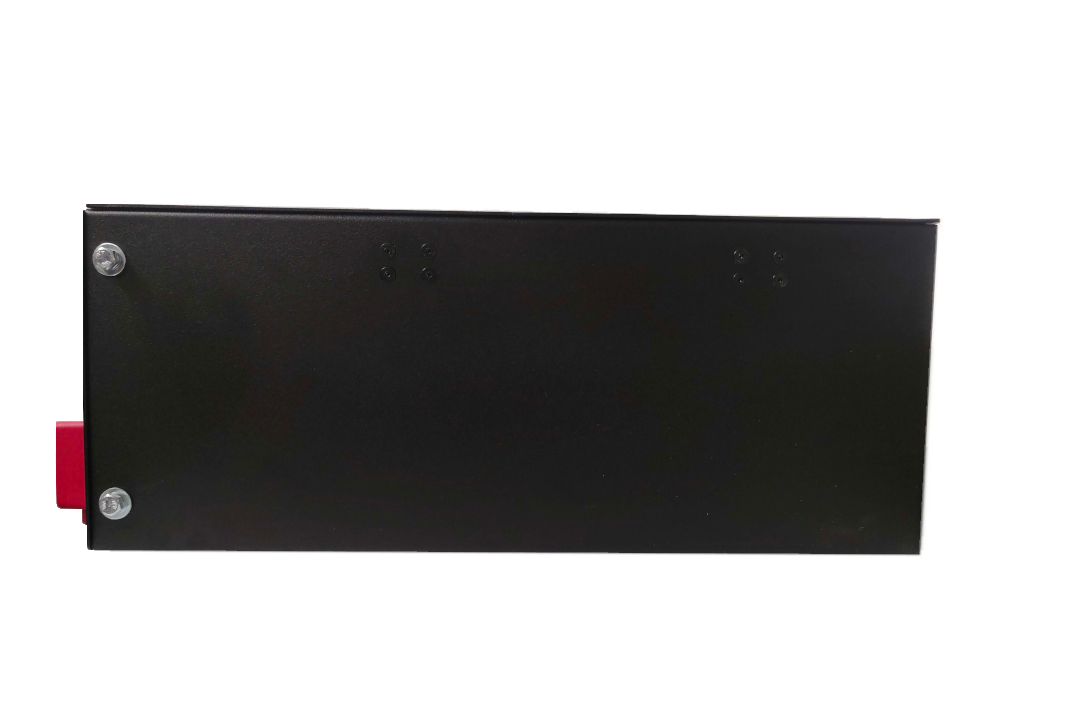

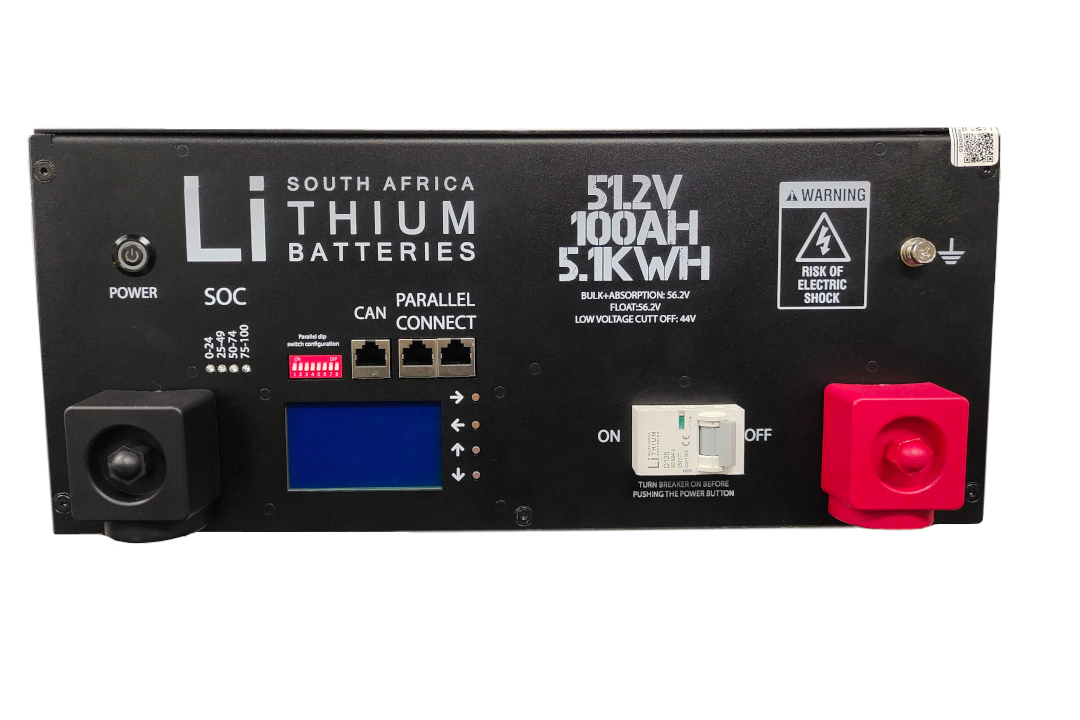

48v 100Ah 5.1kWh LiFePO4 Lithium Iron Phosphate Solar UPS Battery - Rack Mount

R 23,999.95
Out Of Stock
-
+
Add to Wishlist

DOWNLOAD MANUAL

5.2KWH Capacity @ 40A load

5.1KW Max Continuous Load
Cycle life

7000 Cycles @ 100% DoD @ 0.5C @ 25°c until 70%(70AH) Capacity retention remains

10 Year Warranty(20-30 years service life)

Details:
CAN Bus Comms: Victron,Growatt,Sunsync,DEYE
Bulk + Absorption: 56.2v
Float : 56.2v
Low Voltage Cut Off: 44v
Maximum continuous Charge/Discharge For Single Unit: 100A  (Recommended 50A)
Charge for Parallel units: (60A*"Units In parallel") / 2
Discharge for Parallel units: 100A * "Units in parallel

Display Definitions:
OV - Warn: high pressure alarm
OV - Prot: over-voltage protection
UV - Warn: low pressure alarm
UV - Prot: under-voltage protection
OT-Warn：High temperature alarm
OT-Prot：Over temperature protection
UT - Warn: low temperature alarm
UT - Prot: low temperature
OC - Warn: over-current alarm
OC - Prot: over-current protection
CAPA - Warn: remaining capacity of the alarm
OFF - USE: failure alarm
SCP：Short circuit protection



Victron To LBSA
LBSA CAN Address Dial
