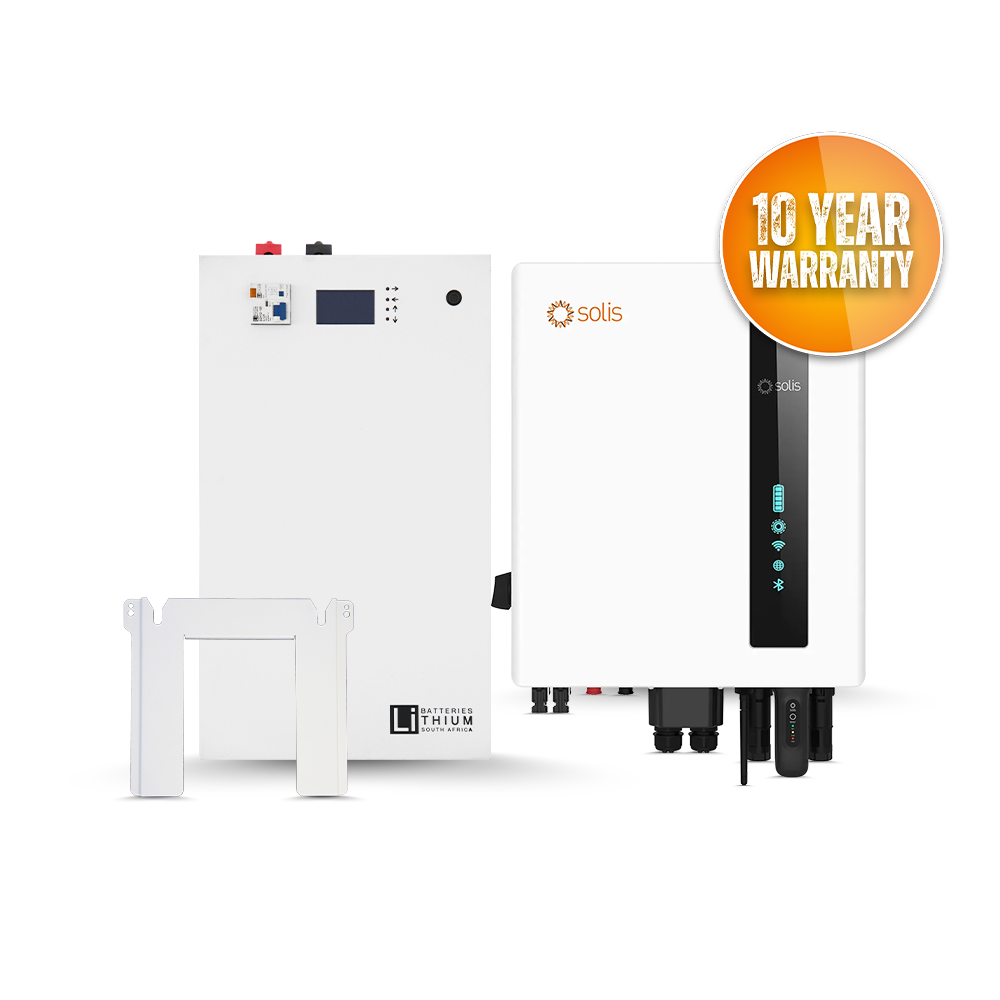

Solis Hybrid 5K & LBSA 51.2V 104Ah 5.3kWh
PLEASE CONFIRM STOCK ON PRODUCTS BEFORE PAYMENT.
51.2V 104Ah 5.3kWh LiFePO₄
WALL MOUNT SOLAR UPS BATTERY
Meet the LBSA 51.2V 5.3kWh LiFePO₄ Wall Mount Battery – a reliable, energy-efficient storage solution designed for modern solar and UPS systems. Engineered and assembled by Lithium Batteries South Africa, this unit offers safe, long-lasting power with a compact, wall-mounted design that saves space while complementing your setup. Built on LiFePO₄ technology, it delivers exceptional cycle life, stable performance, and high energy density for residential and small commercial applications.
DETAILS
Discover what makes the LBSA 51.2V 5.3kWh LiFePO₄ Wall Mount Battery the smart choice for home and backup energy storage. Below, you'll find key specifications, performance details, and compatibility information to help you select and integrate the perfect low-voltage solution for your system with confidence.
BULK + ABSORPTION | 51.2V |
FLOAT | 56.2V |
LOW VOLTAGE CUT-OFF | 44V |
CHARGE FOR PARALLEL UNITS | (50A*UNITS IN PARALLEL*)/2 |
DISCHARGE FOR PARALLEL UNITS | (100A*UNITS IN PARALLEL*) |
WARRANTY
10 YEAR WARRANTY / 4500 CYCLES (9000 CYCLES ON BMS DISPLAY)
(20 - 30 YEAR SERVICE LIFE)
MODULE BASIC PARAMETERS
Learn more about the essential parameters of the LBSA 51.2V 5.3kWh LiFePO₄ Battery. Explore its electrical characteristics, protective features, and operating performance to ensure your solar or UPS setup is efficient, reliable, and ready for long-term energy independence.
MODULE NOMINAL VOLTAGE (V) | 51.2V |
MODULE NOMINAL CAPACITY (Ah) | 104Ah |
MODULE NOMINAL POWER (kWh) | >5.2kWh @ 0.4c (TESTED) |
DIMENSIONS (mm) | 630mm x 345mm x 137mm |
WEIGHT (Kg) | 42KG |
DISCHARGE CUT-OFF VOLTAGE (V) | 44V |
CHARGE VOLTAGE (BULK + ABSORPTION) (V) | 56.2V |
MAX DISCHARGE CURRENT (A) | 100A |
RECOMMENDED CHARGE CURRENT | 50A |
COMMUNICATION INTERFACE | CAN |
CONFIGURATION | 16S |
OPERATING TEMPERATURE | 0 - 50 ℃ (CHARGE) -20 - 50 ℃ (DISCHARGE) -20 - 55 ℃ (STORAGE) |
CELL CHEMISTRY | LITHIUM IRON PHOSPHATE (LiFePO4) |
CYCLE LIFE | ≥80% CAPACITY STATE AFTER 4800 CYCLES AT 0.5C, 25℃, 100% DOD |
IP LEVEL | IP 20 |
CAN BUS COMMUNICATION
The LBSA 51.2V LiFePO₄ Battery features CAN Bus communication protocol, ensuring seamless integration with leading inverter brands for optimal system performance and monitoring.
VICTRON | GROWATT |
SUNSYNK | DEYE |
LUXPOWER | SMA |
SOLIS |
COMPATIBLE BATTERY LIST
Click on the logo below for the Solis Battery Compatibility List.
RUNNING MODE
Working light: Green LED to show the battery working status. Details as follows

CAPACITY
SOC light: 4 green LED lights to show the capacity status of battery pack. Each LED represents 25% of the capacity.

COMMUNICATION INTERFACE
CAN CAN communication interface: follow CAN BUS protocol, for output pack information to the inverter.

PIN 3 | Ground |
PIN 4 | CAN-H |
PIN 5 | CAN-L |
RS485 Communication interface: RJ45 port, follow RS485 protocol. For transmitting battery pack information between paralleled packs, use a standard RJ45 cable. This pack is compatible with any LBSA SMART batteries.
PIN | DEFINITION |
PIN 1, 8 | RS485-B |
PIN 2, 7 | RS485-A |
PIN 3, 6 | Ground |
PIN 4, 5 | NC (Bridge weld) |
DOWNLOADS
Access all the essential resources for the LBSA 51.2V 5.3kWh LiFePO₄ Wall Mount Battery in one place. Here, you'll find manuals, guides, and technical documents to help you install, operate, and maintain your battery system with confidence.
