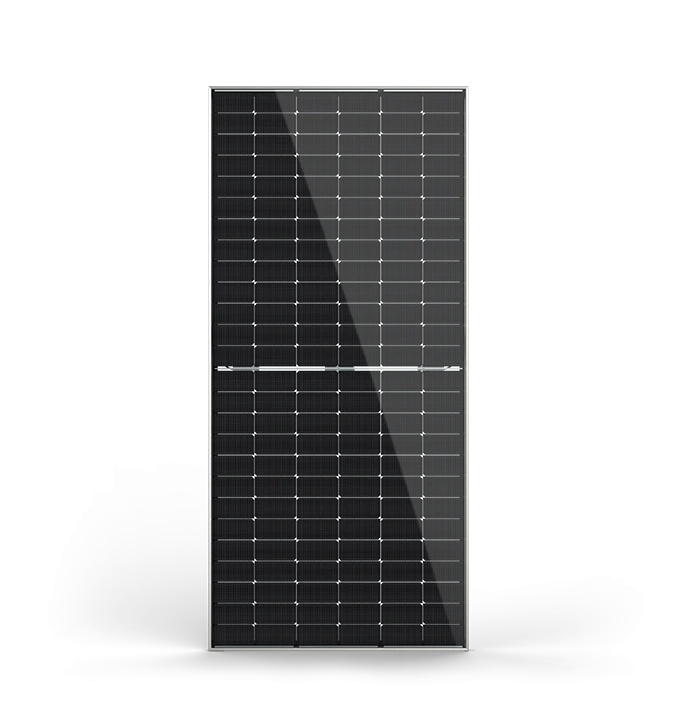

LBSA 460W HALF CELL MONO SOLAR PANEL
R 1,375.40
Out Of Stock
LiFePo4
LBSA 460W HALF CELL
MONO SOLAR PANEL
Experience superior solar performance with our LBSA 460W Half Cell Mono Solar Panel – a high-efficiency monocrystalline panel designed for maximum energy output. This premium solar panel delivers exceptional power generation with advanced half-cell technology, superior durability, and optimal performance in various weather conditions. Perfect for residential, commercial, and utility-scale installations, this panel provides reliable foundation for your renewable energy system.

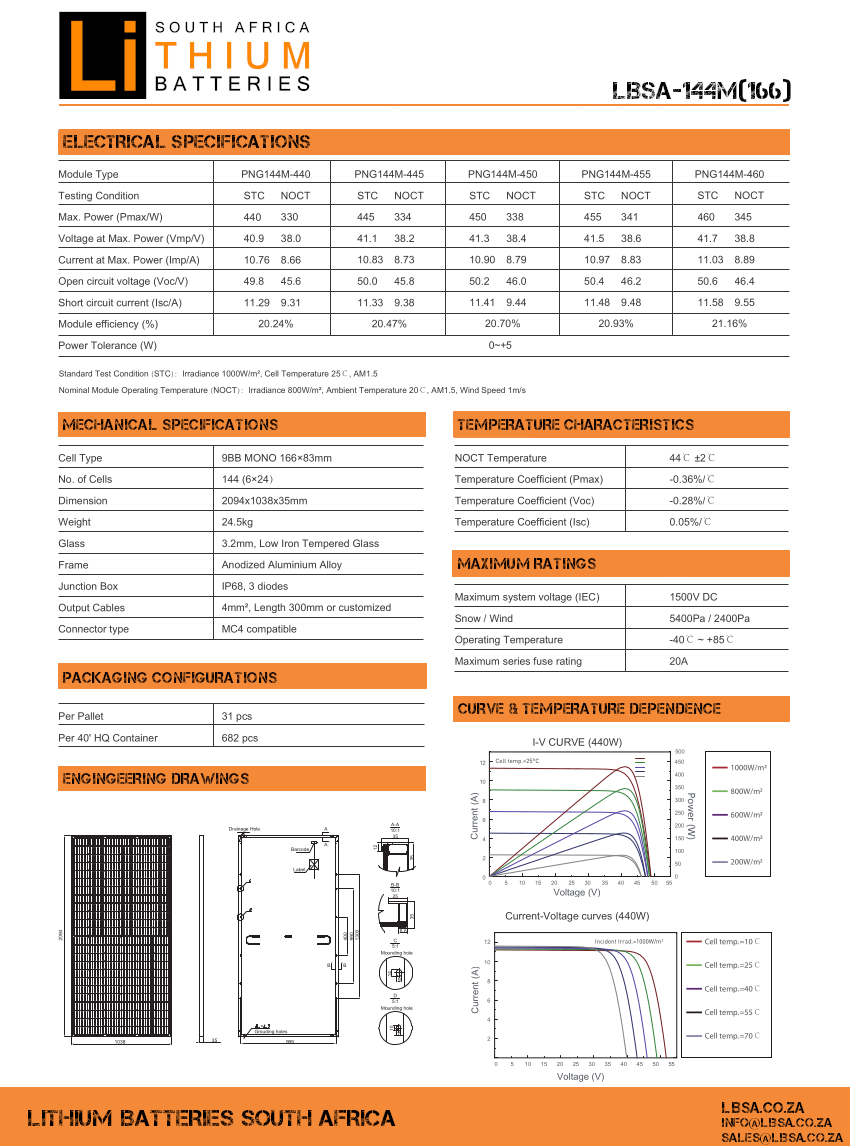

ELECTRICAL SPECIFICATIONS
Discover the detailed electrical specifications of the LBSA 460W Half Cell Mono Solar Panel. Below, you'll find comprehensive performance data under both Standard Test Conditions (STC) and Nominal Operating Cell Temperature (NOCT) to help you understand the panel's capabilities in various operating conditions.
| MODULE TYPE | PNG144M-460 |
| MAX. POWER (PMAX/W) | 460W (STC) / 345W (NOCT) |
| VOLTAGE AT MAX. POWER (VMP/V) | 41.7V (STC) / 38.8V (NOCT) |
| CURRENT AT MAX. POWER (IMP/A) | 11.03A (STC) / 8.89A (NOCT) |
| OPEN CIRCUIT VOLTAGE (VOC/V) | 50.6V (STC) / 46.4V (NOCT) |
| SHORT CIRCUIT CURRENT (ISC/A) | 11.58A (STC) / 9.55A (NOCT) |
| MODULE EFFICIENCY (%) | 21.16% |
| POWER TOLERANCE (W) | 0~+5W |

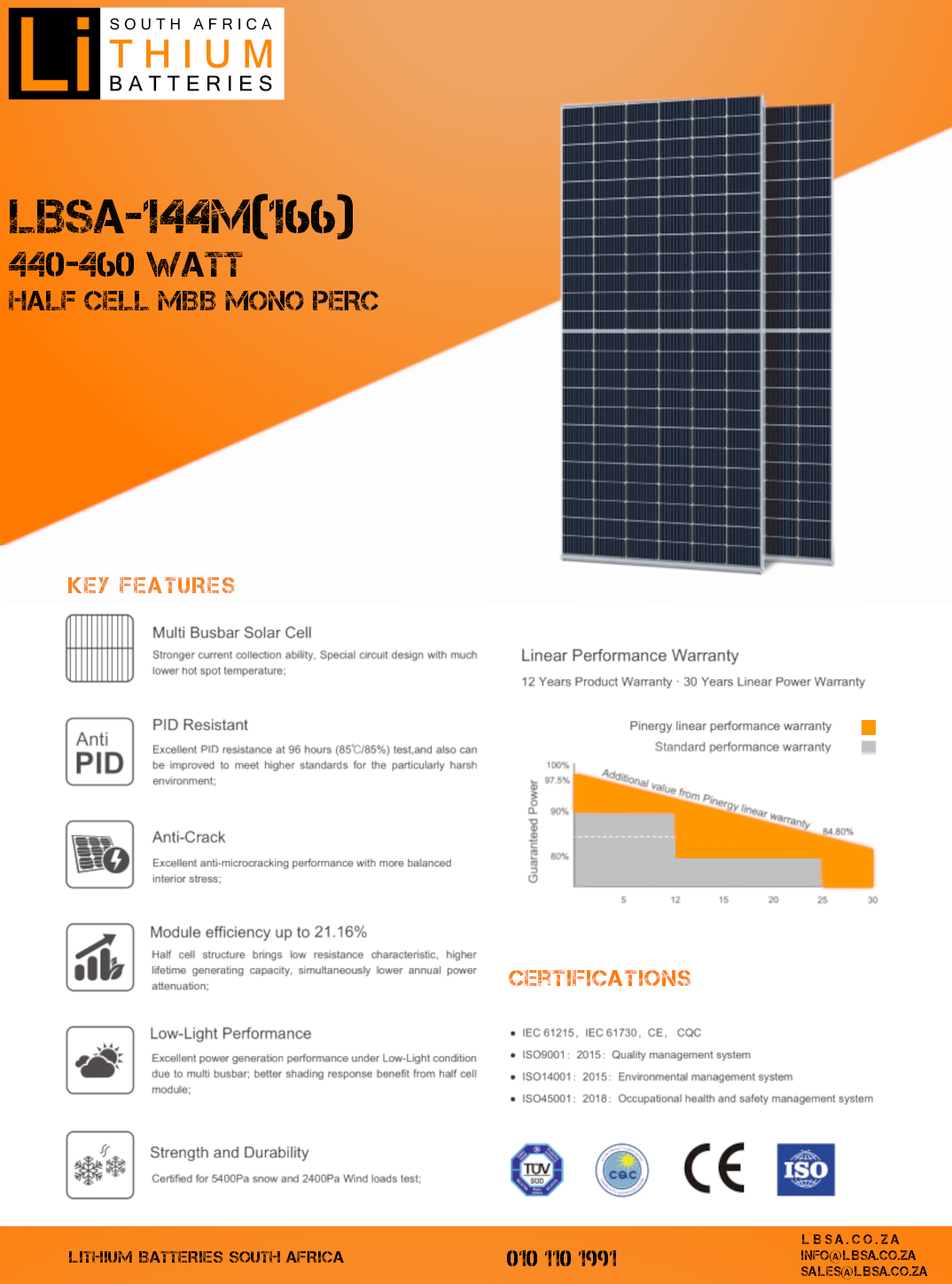

KEY FEATURES
Multi Busbar Solar Cell
Stronger current collection ability, Special circuit design with much lower hot spot temperature;
PID Resistant
Excellent PID resistance at 96 hours (85°C/85%) test, and also can be improved to meet higher standards for the particularly harsh environment;
Anti-Crack
Excellent anti-microcracking performance with more balanced interior stress;
Module efficiency up to 21.16%
Half cell structure brings low resistance characteristic, higher lifetime generating capacity, simultaneously lower annual power attenuation;
Low-Light Performance
Excellent power generation performance under Low-Light condition due to multi busbar; better shading response benefit from half cell module;
Strength and Durability
Certified for 5400Pa snow and 2400Pa Wind loads test;
CERTIFICATIONS
- IEC 61215, IEC 61730, CE, CQC
- ISO9001: 2015: Quality management system
- ISO14001: 2015: Environmental management system
- ISO45001: 2018: Occupational health and safety management system
