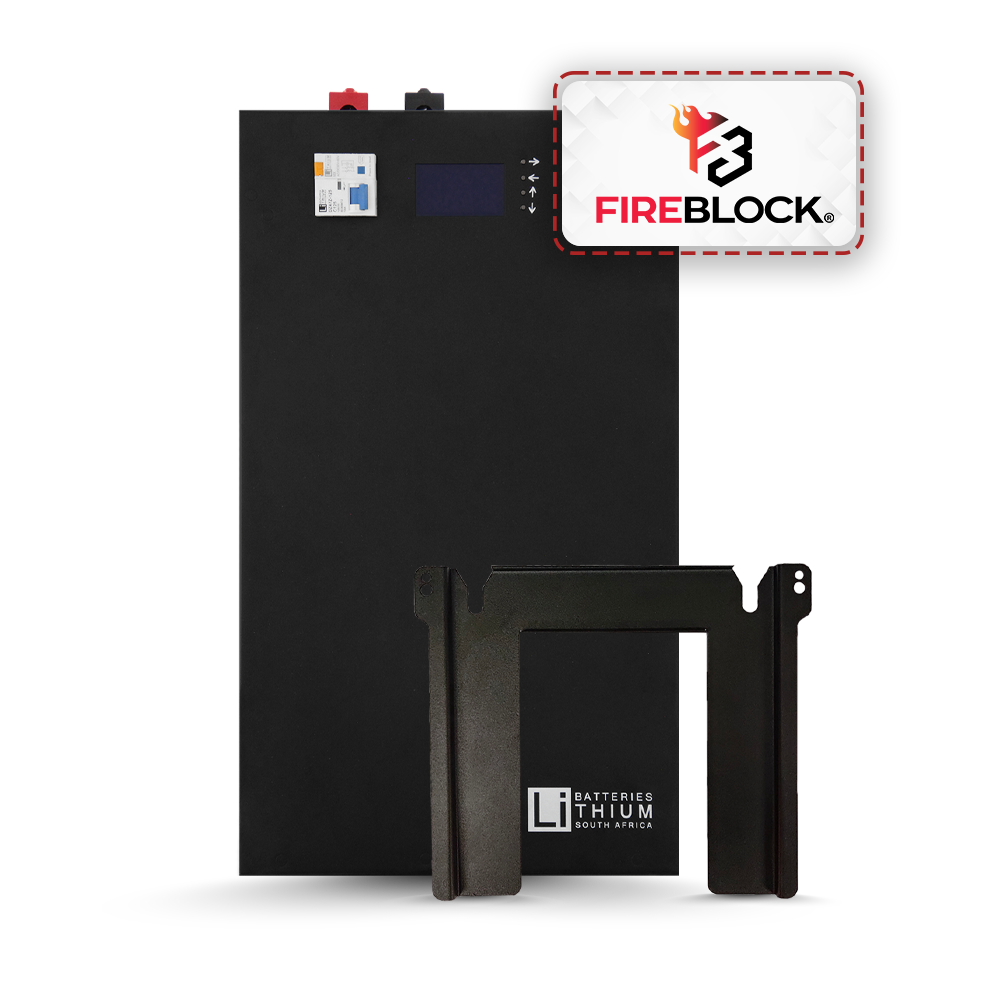

25.6v 104Ah 2.6kWh LiFePO4 Lithium Iron Phosphate Wall Mount Solar UPS Battery l Fireblock Suppression Ready
25.6V 104Ah 2.6kWh LiFePO₄
WALL MOUNT SOLAR UPS BATTERY
Meet the LBSA 25.6V 2.6kWh LiFePO₄ Wall Mount Battery – a compact, reliable energy storage solution designed for smaller solar and UPS systems. Engineered and assembled by Lithium Batteries South Africa, this unit offers safe, long-lasting power with a space-saving wall-mounted design. Built on LiFePO₄ technology, it delivers exceptional cycle life, stable performance, and is ideal for residential backup power and small-scale solar applications.
DETAILS
Discover what makes the LBSA 25.6V 2.6kWh LiFePO₄ Wall Mount Battery the smart choice for home and backup energy storage. Below, you'll find key specifications, performance details, and compatibility information to help you select and integrate the perfect low-voltage solution for your system with confidence.
| BULK + ABSORPTION | 28V |
| FLOAT | 28V |
| LOW VOLTAGE CUT-OFF | 22V |
| CHARGE FOR PARALLEL UNITS | (50A*UNITS IN PARALLEL*)/2 |
| DISCHARGE FOR PARALLEL UNITS | (100A*UNITS IN PARALLEL*) |
WARRANTY
10 YEAR WARRANTY / 4500 CYCLES (9000 CYCLES ON BMS DISPLAY)
(20 - 30 YEAR SERVICE LIFE)
MODULE BASIC PARAMETERS
Learn more about the essential parameters of the LBSA 25.6V 2.6kWh LiFePO₄ Battery. Explore its electrical characteristics, protective features, and operating performance to ensure your solar or UPS setup is efficient, reliable, and ready for long-term energy independence.
| MODULE NOMINAL VOLTAGE (V) | 25.6V |
| MODULE NOMINAL CAPACITY (Ah) | 104Ah |
| MODULE NOMINAL POWER (kWh) | >2.6kWh |
| DIMENSIONS (mm) | 630mm x 345mm x 137mm |
| WEIGHT (Kg) | 27.5KG |
| DISCHARGE CUT-OFF VOLTAGE (V) | 22V |
| CHARGE VOLTAGE (BULK + ABSORPTION) (V) | 28V |
| MAX DISCHARGE CURRENT (A) | 100A |
| RECOMMENDED CHARGE CURRENT | 50A |
| COMMUNICATION INTERFACE | CAN |
| CONFIGURATION | 8S |
| OPERATING TEMPERATURE | 0 - 50 ℃ (CHARGE) -20 - 50 ℃ (DISCHARGE) -20 - 55 ℃ (STORAGE) |
| CELL CHEMISTRY | LITHIUM IRON PHOSPHATE (LiFePO4) |
| CYCLE LIFE | ≥80% CAPACITY STATE AFTER 4800 CYCLES AT 0.5C, 25℃, 100% DOD |
| IP LEVEL | IP 20 |
CAN BUS COMMUNICATION
The LBSA 25.6V 2.6kWh LiFePO₄ Battery features CAN Bus communication protocol, ensuring seamless integration with leading inverter brands for optimal system performance and monitoring.
| VICTRON | GROWATT |
| SUNSYNK | GOODWE |
| LUXPOWER | SOLIS |
| CHISAGE |
INVERTER APPROVAL LISTS
Click on the inverter below to view our battery on their "Approved battery" list.
COMMUNICATION INTERFACE
CAN CAN communication interface: follow CAN BUS protocol, for output pack information to the inverter.
| PIN 3 | Ground |
| PIN 4 | CAN-H |
| PIN 5 | CAN-L |
RS485 Communication interface: RJ45 port, follow RS485 protocol. For transmitting battery pack information between paralleled packs, use a standard RJ45 cable. This pack is compatible with any LBSA SMART batteries.
| PIN | DEFINITION |
| PIN 1, 8 | RS485-B |
| PIN 2, 7 | RS485-A |
| PIN 3, 6 | Ground |
| PIN 4, 5 | NC (Bridge weld) |
FIREBLOCK KEY FEATURES
Fireblock Lithium is a specialized fire suppression solution designed specifically for lithium battery fires, offering superior protection and safety for your energy storage system.
| SPECIALIZED EXTINGUISHER | Fireblock Lithium is a gel designed specifically to tackle lithium battery fires that other extinguishers can't handle. |
| ECO-FRIENDLY | It's non-toxic and completely biodegradable, making it safe for both people and the environment. |
| EFFECTIVE COOLING | Its unique formula swiftly knocks down flames and cools down the fire, thanks to its powerful composition. |
| SURFACE ADHERENCE | Fireblock Lithium sticks to surfaces well, minimising run-off and ensuring efficient firefighting. |
| TEMPERATURE REDUCTION | It significantly lowers the temperature of the battery pack, preventing further escalation of the fire. |
| QUICK ACTION | Tests have proven that Fireblock Lithium rapidly reduces battery temperature in under a minute, curbing thermal runaway. |
| PREVENTS SPREAD | Acting as a barrier between cells, it stops fire propagation within battery packs, enhancing safety. |
| MINIMAL RUN-OFF | With less than 10% runoff, it minimises environmental contamination from lithium chemicals. |
| SMOKE REDUCTION | By substantially reducing toxic smoke, Fireblock Lithium mitigates environmental impact and lowers explosion risks in confined spaces. |
DOWNLOADS
Access all the essential resources for the LBSA 25.6V 2.6kWh LiFePO₄ Wall Mount Battery in one place. Here, you'll find manuals, guides, and technical documents to help you install, operate, and maintain your battery system with confidence.
