LiFePo4Supported locally

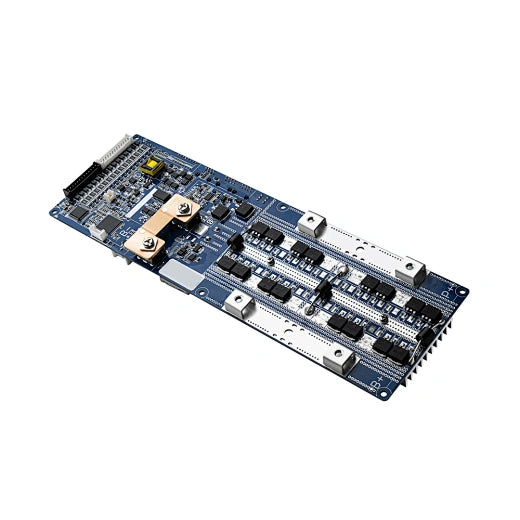

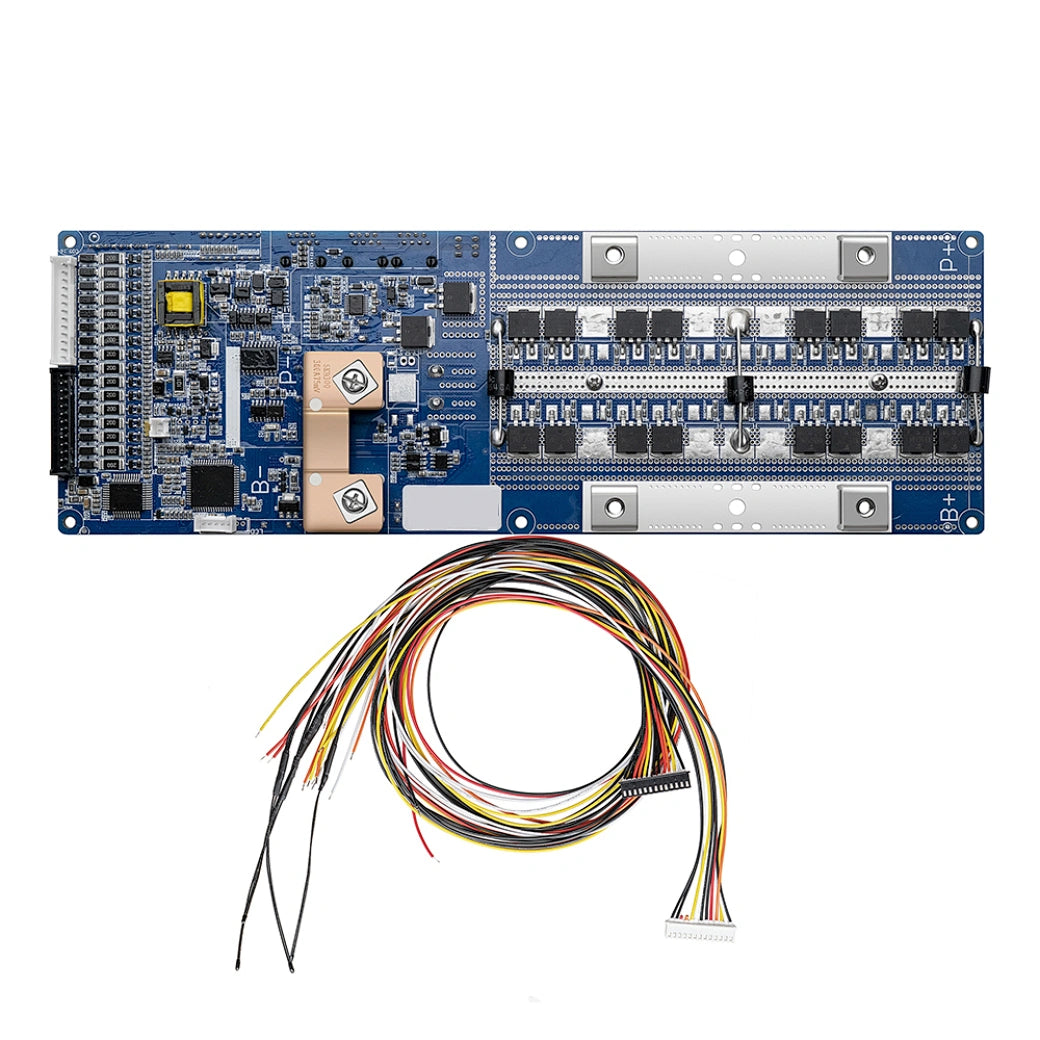

Seplos 100A Smart ESS BMS
R 3,825.00
Available to order · we'll confirm lead time
- Engineered & assembled in South Africa
- Local installation support & servicing
- Secure checkout · finance options available
Technical Parameters
| Continuously charging/discharging current | 100A |
| Communication protocol | CANBUS(default) |
| Working Temperature | -20℃-70℃ |
| Pre-charging | 0-3000ms |
| Current limiting(charging) | 10A |
| Current Balance ( Passive Balancing) | 150mA(Max) |
| Power consumption |
Working mode power consumption = <40mA Sleeping mode power consumption= 0uA |
| Capacity protection |
Nominal capacity= 5-500Ah Remaining capacity protection= 5% |
| Short Circuit protection |
Short circuit protection lock= Continuously short in the output circuit Short circuit protection lock times= 5 times Short circuit protection lock release= Connected with charger |
| Individual cell voltage protection |
Over voltage protection= 3650mV Under voltage protection= 2700mV |
| Voltage protection |
Over voltage protection= 57.6V Under voltage protection= 41.6V |
| Current protection |
Over current protection= 110A (30ms) |
| Heating function |
Start= 0 degrees Celsius Stop= 10 degrees Celsius |
