TECHNICAL SPECIFICATIONS

INVERTER SPECS

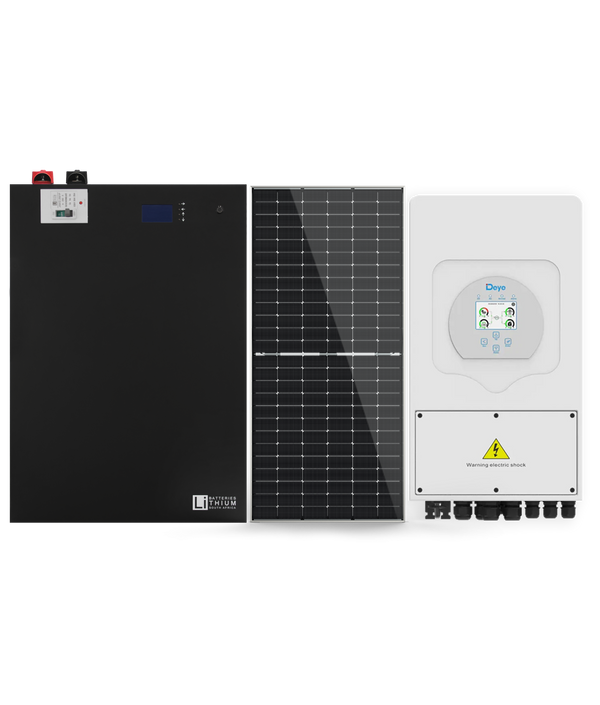

DEYE Solar Inverter 5K Single Phase
Battery Input Data
Battery Type	Lead-acid or lithium-ion
Battery Voltage Range (V)	40V- 60V
Max. Charging Current (A)	120A
Max. Discharging Current (A)	120A
Charging Curve	3 Stages/ equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500W
PV Input Voltage (V)	370V(100V~500V)
MPPT Range (V)	125~425V
Full Load DC Voltage Range	240~425V
Start-up Voltage	<150V
PV Input Current (A)	11A + 11A
No. of MPPT Trackers	2
No. of Strings per MPPT	1/1
AC Output Data
Related AC Output and UPS Power (W)	5000W
Max. AC Output Power(W)	5500W
Peak Power (off-grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	21.7A
Max. AC Current (A)	25A
Max Continuous AC Passthrough (A)	35A
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz;220/230/240Vac (single phase)
Grid Type	Single Phase
Current harmonic distortion	THD <3%(Linear load) <1.5%
Efficiency
Max. Efficiency	97.60%
Euro. Efficiency	96.50%
MPPT Efficiency	99.90%

Nominal Voltage (V)	51.2V
Nominal Capacity(Ah)	208AH
Nominal Power (kWh)	>10.6kWh
Dimensions	750mm135mm520mm
Weight (Kg)	86kg
Discharge Cut-offVoltage(V)	44V
Charge Voltage (Bulk + Absorbtion)(V)	56.2V
Max Discharge Current (A)	200A
Recommended Charge Current (A)	100A
Communication Interface	CAN
Configuration	2P 16A
Working Temperature	0~50°C(Charge) -20~50°C(Discharge) -20~55°C(Storage)
Cell Chemistry	Lithium Iron Phosphate (LiFePO4)
Cycle Life	>80% capacity state after 4800 cycles at 0.5C, 25°C,100% DOD
IP Level	>IP20
